Product Gallery
Product Information

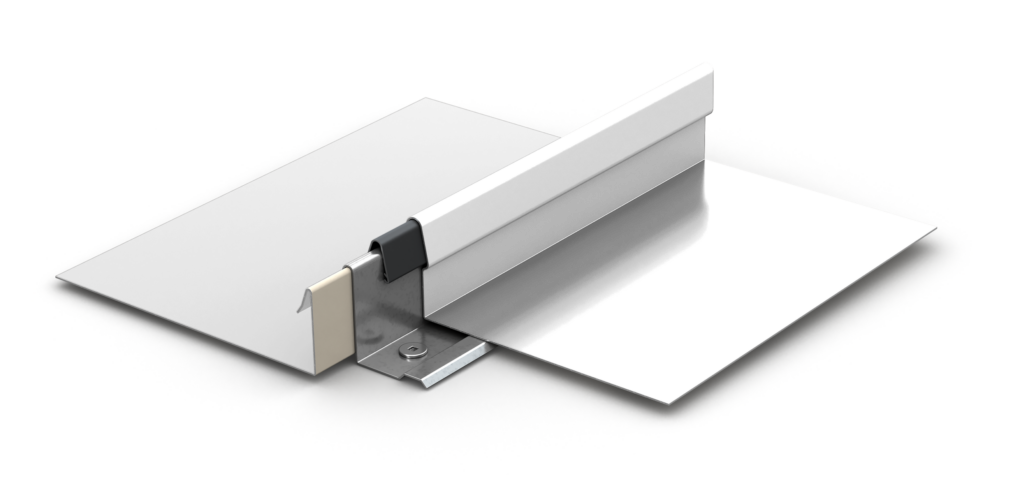

The Berridge Cee-Lock architectural metal standing seam panel is designed for residential or commercial construction over solid sheathing. This 1 ½” high panel incorporates an integral snap-lock seam and an optional extruded vinyl weatherseal. The standard coverage option is 16 1/2″ and its optional 11 1/2″ coverage adds versatility.
Materials
- 24 and 22 Gauge Steel
- 0.032 Aluminum
Specifications
- Uses: Roof, Fascia
- Coverage: 16 ½" or 11 ½"**
- Finishes: Smooth, Optional Striations
- Fasteners: Concealed
- Applications: Solid sheathing
- Seam: 1 ½" snap-lock seam
- Optional: Extruded vinyl weatherseal*
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- 16 ½” profile may be site formed in continuous lengths with the Berridge CL-21 Roll Former
- 11 ½” profile may be site formed in continuous lengths with the Berridge CL-16 Roll Former
- Continuous Cee-Rib available with steel for higher uplift resistance
- Use Stainless Steel Cee-Lock Clip with Aluminum panels
Note:
* Vinyl weatherseal required for watertight warranties
** Contact BMC for material availability. Not available with striations.
Technical
UL Classifications
-
UL Wind Resistance Rated: UL-580 (Approved for Steel and Aluminum)
-
UL Wind Resistance Rated: UL-90 (Approved for Steel and Aluminum)
-
UL Wind Resistance Rated: UL-1897 (Approved for Steel and Aluminum)
-
UL Fire Resistance Rated: UL-790 (Approved for Steel and Aluminum)
-
-
-
UL Impact Resistance Rated: UL-2218 (Approved for Steel and Aluminum)
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
Miscellaneous
-
Texas Department of Insurance Listed
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Warranties
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
CL-21 CEE-LOCK ROLL FORMER
View All Roll Formers

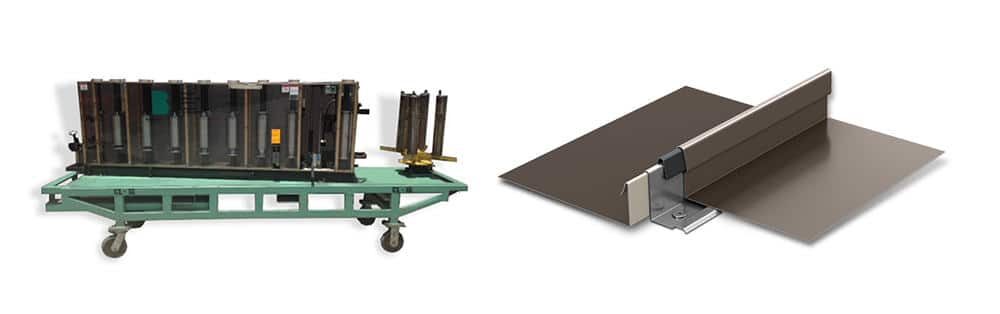

CL-16 CEE-LOCK (11 1/2") PANEL
View All Roll FormersAccessories
Berridge patented Vinyl Weatherseal is recommended for most projects, but is required for open framing. Consult BMC for open framing projects using Cee-Lock.
Berridge Cee-Clips can be used over solid decking applications.
Berridge Continuous Cee-Rib can be used for higher performance. It is required for open framing applications.
Panel support clips are required for expansion joints. Use at purlin and other framing locations to provide support for the ends Cee-Ribs.
Die-stamped to match the panel profile. Use as a mechanical weather closure at ridges, headwalls, and slope transitions. Use Zee-Flashing for hips.
Extra Cee-Lock female legs are used for panel turndowns to fascia at eaves. Refer to page CL-64 of the installation details for more info.
