Product Information

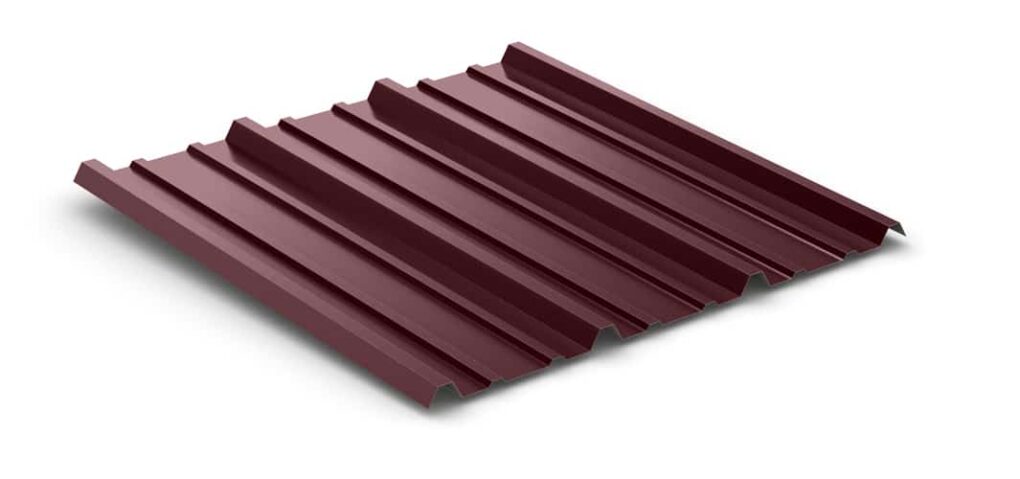

The Berridge “R” Panel is a wide, economical panel providing 36″ of coverage for vertical or horizontal applications. Similar to the “M” Panel, this exposed fastener panel provides a different pattern option for a wide range of applications.
Materials
- 24 and 22 Gauge Steel
- 0.032 Aluminum
Specifications
- Uses: Roof, Wall, Soffit, Ceiling, Fascia, Mansard, Sheathing, Screen wall
- Coverage: 36"
- Finishes: Smooth corrugated
- Fasteners: Exposed
- Applications: Vertical or horizontal* over open framing or solid sheathing
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Structural properties allow it to be utilized as a sheathing option
- Estimate 115 fasteners/sq
- Use inside and outside foam closures to help prevent air infiltration at ridges, eaves, head walls, etc.
- Use expandable foam filler tape per installation details at closure at hips and valleys
- Use mastic sealant tape per installation details at panel endlaps, sidelaps, skylights, with foam closure, etc.
* Horizontal on wall applications only
Technical
UL Classifications
Florida Product Approvals
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Miscellaneous
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories
Rubber closures to help prevent air infiltration at ridges, eaves, headwalls, etc.
Use per installation details as closure at hips & valleys.
Use per installation details at panel endlaps, sidelaps, skylights, with foam closures, etc.
