Materials
- 24 Gauge Steel
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System
- Coverage: 3 5/8"
- Finishes: Smooth, optional wood grain or stucco embossed
- Fasteners: Concealed
- Applications: Vertical over open framing or solid sheathing
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Panel includes a channel drain interlock

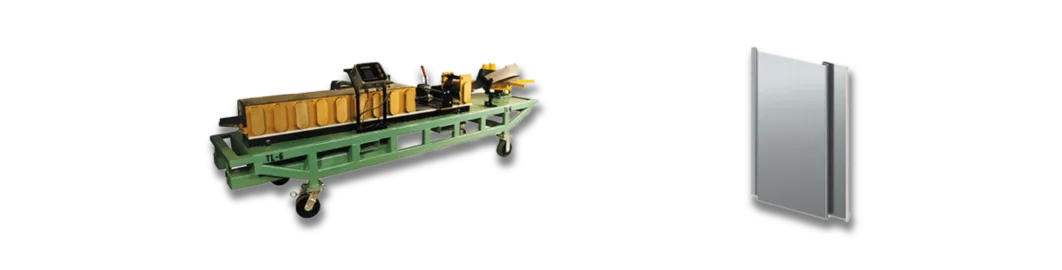

- May be site formed in continuous lengths with the Berridge TL-6 Roll Former

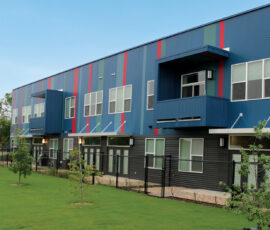

Product Gallery
Product Information

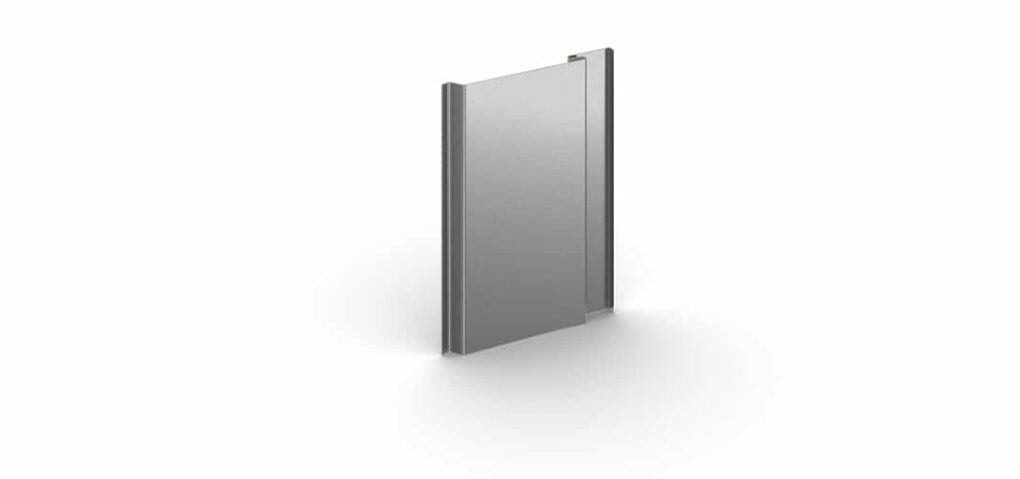

A Narrow-Profile Metal Panel For Versatile Architectural Applications
The Thin-Line Panel from Berridge Manufacturing is a prefinished metal panel designed for projects that require a refined appearance and installation flexibility. With a narrow profile, a concealed fastener system, and compatibility across wall, soffit, ceiling and fascia applications, it supports both functional performance and architectural intent.
Where The Thin-Line Panel Is Used
The Thin-Line Panel is designed for use across multiple building envelopes and architectural applications. Its adaptability makes it suitable for:
- Wall systems
- Soffit and ceiling installations
- Fascia applications
- Screen walls
- Integration within the Berridge Fencing System
Its ability to be installed over open framing or solid sheathing allows it to accommodate a range of project conditions.
Key Panel Characteristics
Narrow Coverage Profile
With a coverage width of 3 5/8 inches, the Thin-Line Panel creates a clean, linear appearance. This narrower profile allows for greater visual definition compared with wider panel systems, supporting more detailed architectural designs.
Concealed Fastener Design
The panel utilizes a concealed fastening system, helping maintain a consistent surface appearance without visible hardware. This contributes to both aesthetics and system integrity.
Material And Finish Options
Manufactured from 24-gauge steel, the panel is available in multiple finish options, including:
- Smooth
- Wood grain
- Stucco embossed
These options allow the panel to align with a variety of architectural styles and project requirements.
Channel Drain Interlock
The integrated channel drain interlock supports panel alignment and contributes to system performance by managing water movement.
Installation And Fabrication Flexibility
The Thin-Line Panel is engineered for adaptability in both fabrication and installation:
- Available in continuous lengths up to 40 feet from the factory
- Can be site-formed using the Berridge TL-6 Roll Former
- Designed for vertical installation
This flexibility allows project teams to align panel production and installation with project-specific requirements, including longer panel runs or field-forming needs.
When To Consider The Thin-Line Panel
This panel is often selected for projects that require:
- A more refined or tightly spaced panel aesthetic
- Consistency across multiple surfaces such as walls, soffits and fascia
- Concealed fastening for a clean visual result
- Flexibility in fabrication and installation methods
Its narrow profile, combined with its adaptability across wall, soffit and fascia applications, makes it well-suited for both new construction and retrofit projects.
Supporting Product Expertise From Berridge Manufacturing
Berridge Manufacturing provides a range of architectural metal panel systems supported by advanced manufacturing capabilities and a nationwide network of branches. With experience across commercial, architectural and restoration projects, Berridge supports project teams from specification through execution.
Explore Panel Options Or Request Additional Information
If you are evaluating panel systems for an upcoming project, the Thin-Line Panel offers a balance of design flexibility and system performance across multiple applications.
Contact Berridge Manufacturing to request additional product information or speak with a representative about how the Thin-Line Panel may align with your project requirements.
Frequently Asked Questions
Technical
ASTM Tests
-
ASTM E-330 wind resistance tested
