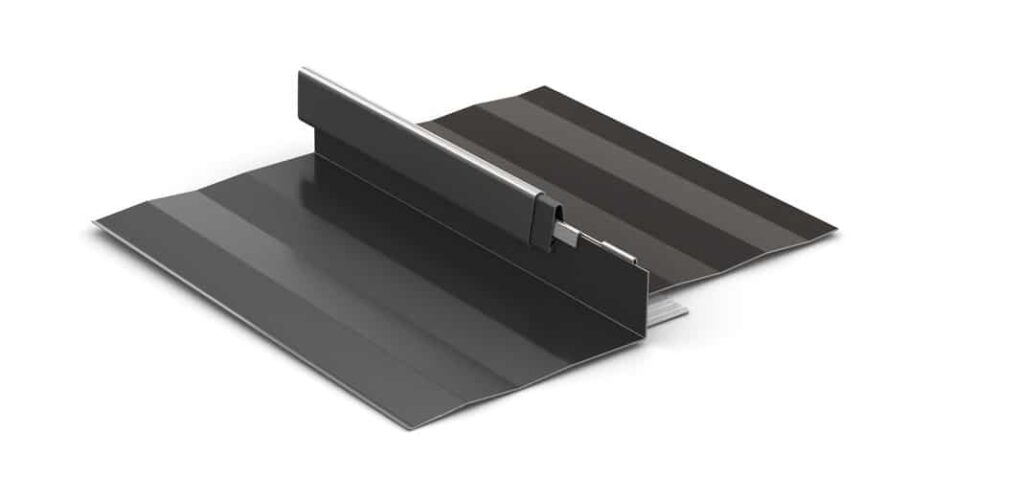

Providing a taller seam option, an additional finish option and wider coverage than the Tee-Panel, the Berridge High Seam Tee-Panel is designed to provide additional options for creating stunning residential or commercial designs over solid sheathing. This 1″ or 1 ½” high panel can be used for straight or curved applications.
Materials
- 24 and 22 Gauge Steel
- 0.032 Aluminum
Specifications
- Uses: Roof, Fascia**
- Coverage: 18 ¼"
- Finishes: Striated, optional smooth
- Fasteners: Concealed
- Applications: Solid sheathing
- Seam: 1" or 1 ½" snap-on with extruded vinyl weatherseal
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’

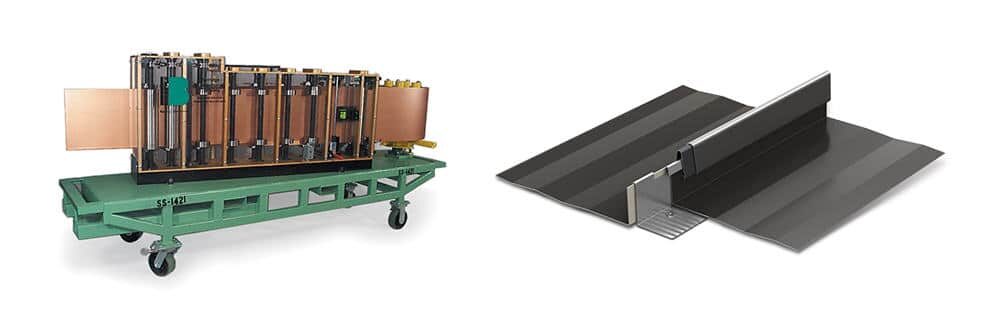

- May be site formed in continuous lengths with the Berridge SS-1421 Roll Former
- Extruded vinyl weatherseal is an integral part of snap-on seam cap and prevents siphoning or flooding over seam
- Extra snap-on seam caps are factory formed to a maximum of 40’
- Use Seam Sleeve for splicing snap-on seams
- Entire roof area shall be covered with Berridge approved underlayment
- Use 1” or 1 1/2”Tee-Clip*
- Use 1” or 1 1/2” Stainless Tee-Clip with Aluminum panels*
Note:
* Consult the Berridge Technical department or the High Seam Tee-Panel downloads for clip spacing
** Fascia can not be curved or tapered. Please consult the High Seam Curved or Tapered Tee-Panel page for more information on the panel’s curving and tapering abilities.
Technical
UL Classifications
-
UL Wind Resistance Rated: UL-90 (Approved for Steel and Aluminum)
-
UL Fire Resistance Rated: UL-790 (Approved for Steel and Aluminum)
-
-
-
UL Impact Resistance Rated: UL-2218 (Approved for Steel and Aluminum)
ASTM Tests
-
ASTM Wind and Water Resistance Tested: ASTM E-1646 (Approved for Steel and Aluminum)
-
ASTM Wind and Water Resistance Tested: ASTM E-1680 (Approved for Steel and Aluminum)
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Warranties
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories
Berridge Tee-Clips are available in 24GA, 1″ or 1-1/2″ heights, and are produced in random colors.
Berridge Folding Tee-Clips are 28GA and are used for curved applications.
Berridge Seam Caps are only available for use with the Berridge Tee-Panel System and include Berridge’s patented Vinyl Weatherseal.
Use seam splices for Tee-Panel seams longer than 40′.
