Product Gallery
Product Information

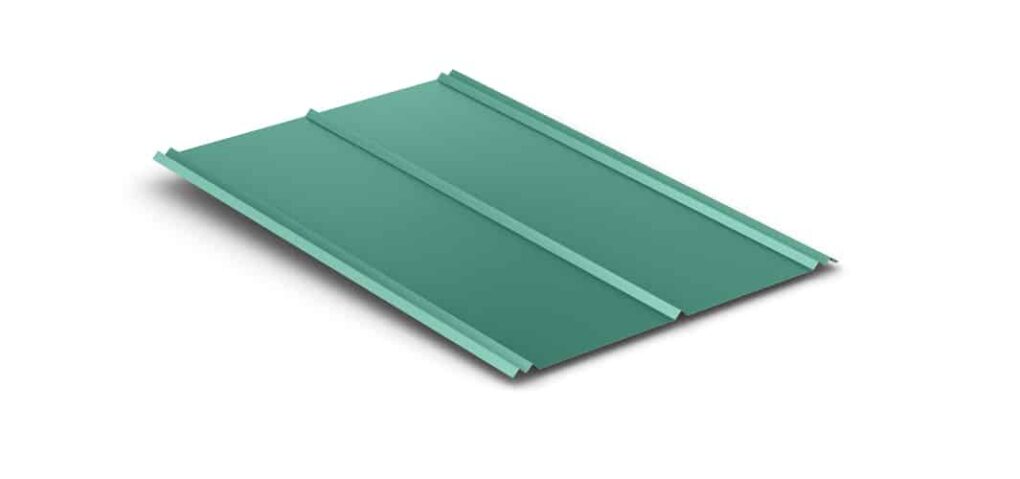

The Berridge Double-Rib Panel is an exposed fastener panel for use over solid sheathing. The panel covers 24″ with a double-rib seam overlap. This wide, economical panel provides a traditional appearance and is ideal for residential or utility applications over solid sheathing.
Materials
- 24 Gauge Steel
Specifications
- Uses: Roof
- Coverage: 24"
- Finishes: Smooth
- Fasteners: Exposed
- Applications: Vertical over solid sheathing
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Estimate 155 fasteners/sq
- Use rubber closures to help prevent air infiltration at ridge, eaves, head walls, etc.
- Use expandable foam filler tape per installation details as closure at hips and valley
- Use mastic tape per installation details at panel endlaps, sidelaps, skylights, with foam closures, etc.
Technical
UL Classifications
Florida Product Approvals
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories
Rubber closures to help prevent air infiltration at ridges, eaves, headwalls, etc.
Use per installation details as closure at hips & valleys.
Use per installation details at panel endlaps, sidelaps, skylights, with foam closures, etc.
