Product Information

The Berridge Reveal Series Panels are concealed fastener metal wall panels designed for horizontal and vertical wall applications. Each panel interlocks with each other and with the Berridge BR-12, HC-16, HR-4, HR-16, HS-8, and HS-12 wall panels to provide endless design possibilities. This panel is available in two substrate options and is ideal for a variety of uses.

Materials

  • 24 and 22 Gauge Steel
  • 0.032 and 0.040 Aluminum

Specifications

  • Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System

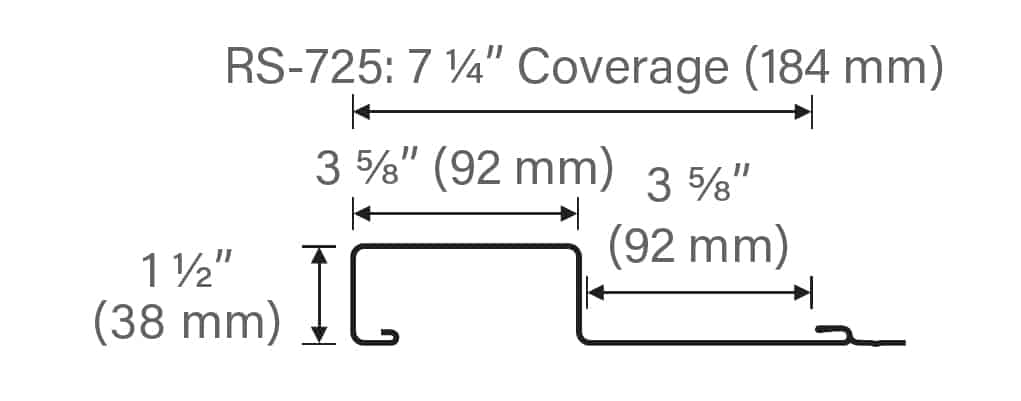

  • Coverage: 7 1/4”
  • Finishes: Smooth
  • Fasteners: Concealed
  • Applications: Vertical on fencing; horizontal or vertical over open framing or solid sheathing

Installation

  • Panel is available from the factory in continuous lengths to a maximum of 40’
  • Interlocks with BR-12, HC-16, HR-4, HR-16, HS-8, and HS-12 panels
  • Use siding starter strip to start panel at bottom of soffit or sill
  • Use channel closure at inside and outside corners
  • Use standard channel at jambs
  • Use special channel at jambs
