Product Information

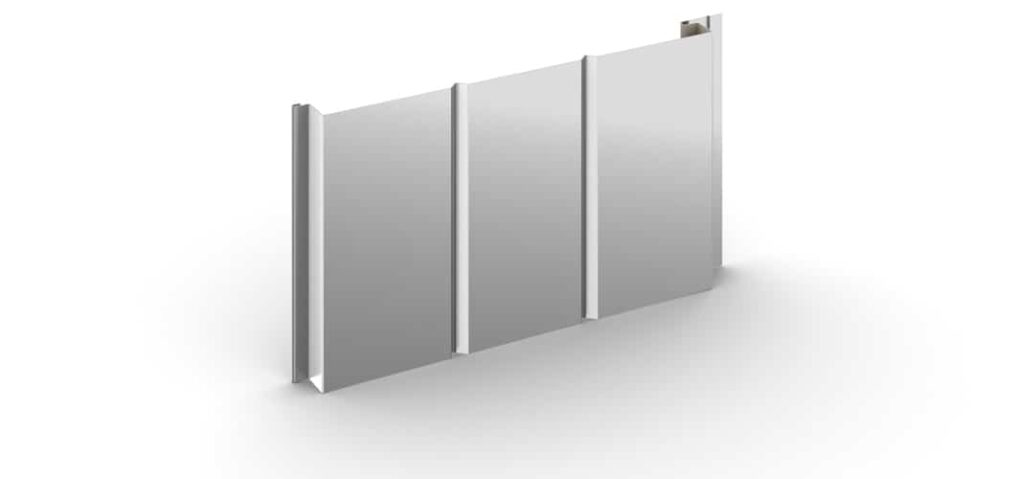

The Berridge Manufacturing L-Panel stands as a versatile and low-maintenance solution designed for soffit, ceilings, sheet metal siding or fascia applications. Crafted from 24- and 22-gauge steel or 0.032 aluminum, these prefinished panels effortlessly adapt to open framing or solid sheathing installations. With smooth, optional stucco emboss and vented variations, this panel provides a multipurpose solution for diverse project requirements.

Measuring at a coverage of eleven and five-eighths inches, the concealed fastener panel showcases optional vee-grooves and venting patterns. Available in continuous lengths up to forty feet, the L-Panel can be site-formed using the Berridge FP-16 Roll Former. The vented option ensures 5.19 square inches of Net Free Vent Area (NFVA) per linear foot, while the 0.032 aluminum variant is exclusively factory-formed. Employing the Berridge L-Panel offers a balance of functionality and aesthetics for various architectural projects, including metal panel siding and roofing.

Materials

  • 24 and 22 Gauge Steel
  • 0.032 Aluminum

Specifications

  • Uses: Soffit, Ceiling, Fascia, Screen Wall
  • Coverage: 11 5/8"
  • Finishes: Smooth, optional stucco emboss
  • Fasteners: Concealed
  • Applications: Vertical over open framing or solid sheathing
  • Pattern: Optional vee-grooves and venting

Installation

  • Panel is available from the factory in continuous lengths to a maximum of 40’
  • May be site-formed using the Berridge FP-16 Roll Former
  • Vented option provides 5.19 square inches of Net Free Vent Area (NFVA) per linear foot of panel. (BMC does not recommend vented products in applications subject to aggressive atmospheres, marine environments or high humidity due to the corrosive nature of these environments on raw edges of steel.)
  • 0.032 Aluminum is factory formed only
sheet metal sidingsheet metal siding

Technical

ASTM Tests

  • ASTM E-1592 Wind Resistance Tested

Miscellaneous

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Downloads

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

General Info

Miscellaneous

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Roll Formers

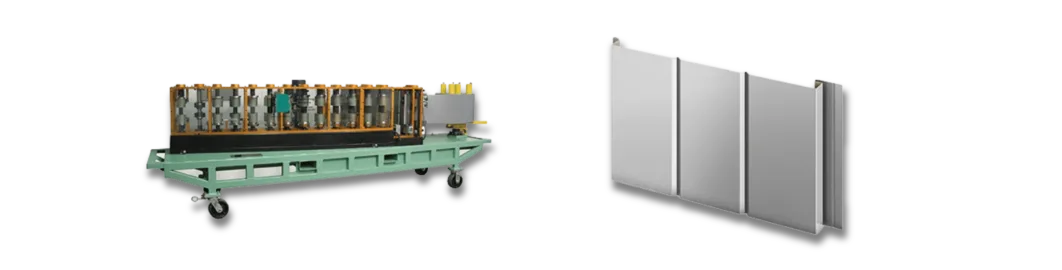

FP-16 L-PANEL ROLL FORMER
