Product Gallery
Product Information

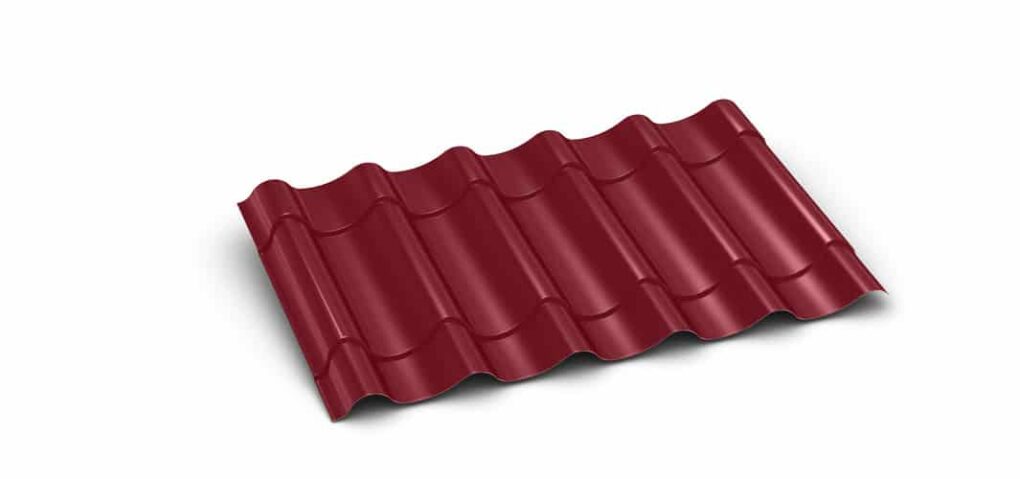

The Berridge S-Tile system creates a clean, crisp simulated tile appearance with prefinished metal. The continuous, up to 40′ long, eave-to-ridge panels provide fast installation without endlaps and are only 1.2 lbs/ft² providing a professional, high-end look with minimal weight and installation expense.
Materials
- 24 Gauge Steel
Specifications
- Uses: Roof
- Coverage: 32 11/16"
- Finishes: Smooth
- Fasteners: Exposed
- Applications: Solid sheathing
- Tiles: 14" step lengths and 1 1/2" tall
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Estimate 60 fasteners per square
- Use individual Spanish Tiles separately for hips, ridges, etc.
- Use eave closure to close off ends of tiles at ridges and hips
- Use flat ridge/hip cap flashing at ridges and hips alone or as sub-flashing to mount individual Spanish Tile along 1” leg*
- Use Inside/Outside foam rubber closures to help prevent air infiltration at ridges, eaves, head walls, etc.
- Use Eave Drip Flashing continuously along eaves*
- Use Gable Drip Flashing over tile along gable*
- Use standard channel at end walls and flashed areas*
- Use Expandable Foam Filler Tape per installation details as closure at hips and valleys
- Use Mastic Sealant Tape per installation details at panel endlaps, sidelaps, skylights, with foam closures, etc.
* Trim drawings with dimensions and finish side required for all Berridge manufactured trim pieces
Technical
UL Classifications
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
Florida Product Approvals
Miscellaneous
-
Texas Department of Insurance Listed
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Miscellaneous
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories
Rubber Closures to help prevent air infiltration at ridges, eaves, headwalls, etc.
Order Individual Spanish Tiles separately for ridges, hips, etc. Use with Flat Ridge/Hip Caps.
Use one Tile Closure per Spanish Tile at end of hip and ridge runs.
Use Flat Ridge/Hip caps alone or as sub-flashing to mount Individual Spanish Tile.
