Product Information

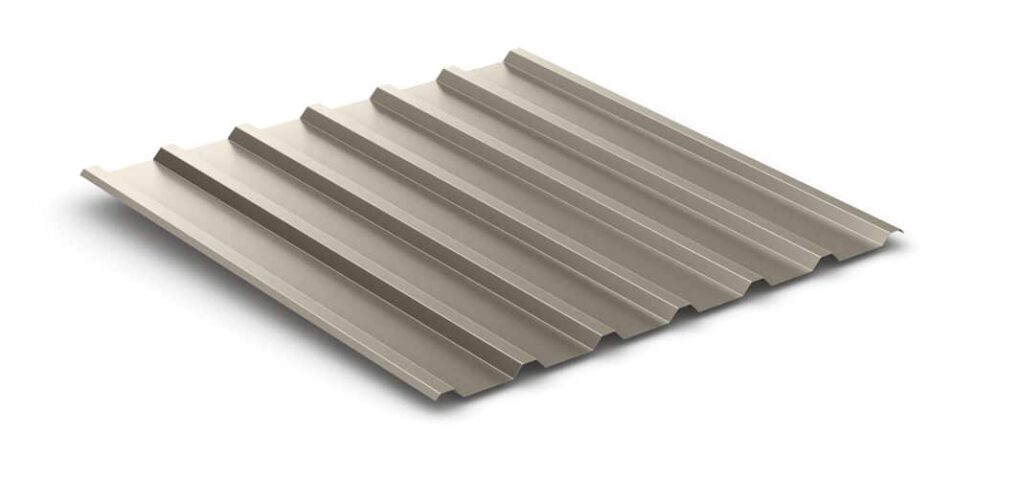

Embrace a lifestyle of design freedom with the Berridge Manufacturing “M” Panel — an architectural masterpiece that transcends conventional boundaries. This wide and economically efficient panel, boasting 36 inches of coverage, redefines possibilities for both vertical and horizontal applications.

With exposed fasteners and smooth corrugated finishes, this versatile panel becomes a canvas for your creativity. Ideal for roofs, walls, soffits, ceilings, fascias, mansards and more, seamlessly blending with diverse design aesthetics.

Crafted from durable 24- and 22-gauge steel or 0.032 aluminum, the M Panel effortlessly merges style with strength. Its strong structure makes it an excellent choice for sheathing, providing a complete solution for your architectural design. Elevate your spaces, embodying the spirit of innovation and design excellence with the Berridge “M” Panel.

Materials

  • 24 and 22 Gauge Steel
  • 0.032 Aluminum

Specifications

  • Uses: Roof, Wall, Soffit, Ceiling, Fascia, Mansard, Sheathing, Screen Wall
  • Coverage: 36"
  • Finishes: Smooth corrugated
  • Fasteners: Exposed
  • Applications: Vertical or horizontal* over open framing or solid sheathing

Installation

  • Panel is available from the factory in continuous lengths to a maximum of 40’
  • Structural properties allow it to be utilized as a sheathing option
  • Estimate 115 fasteners/sq
  • Use inside and outside foam closures to help prevent air infiltration at ridges, eaves, head walls, etc.
  • Use expandable foam filler tape per installation details at closure at hips and valleys
  • Use mastic sealant tape per installation details at panel endlaps, sidelaps, skylights, with foam closure, etc.

* Horizontal on wall applications only

Technical

UL Classifications

Florida Product Approvals

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Roll Formers

Accessories

Rubber closures to help prevent air infiltration at ridges, eaves, headwalls, etc.
Use per installation details as closure at hips & valleys.
Use per installation details at panel endlaps, sidelaps, skylights, with foam closures, etc.
