Product Information

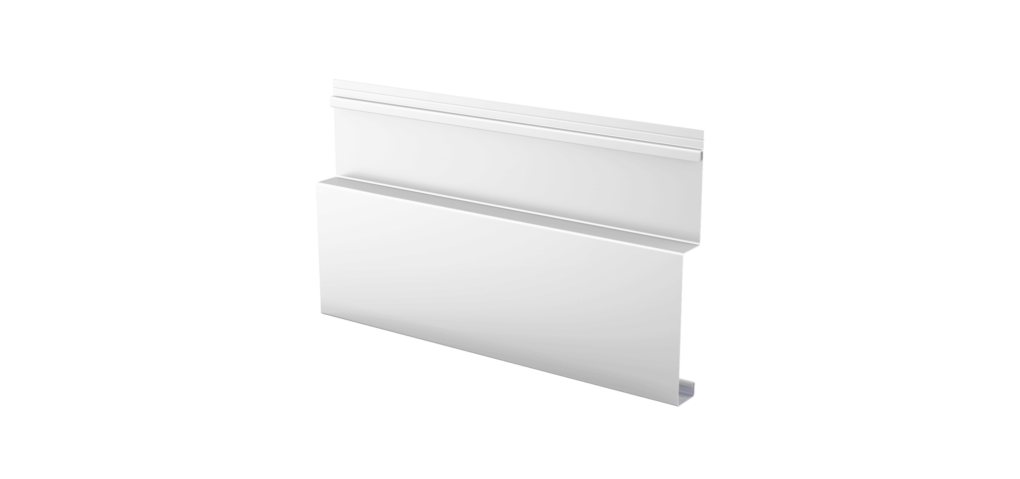

Elevate your project with the Berridge Manufacturing Reveal Series Panels, where sophistication meets seamless design. These concealed fastener metal wall panels redefine versatility, effortlessly interlocking horizontally or vertically with Berridge’s array of metal panel siding for limitless design creativity. Crafted from durable 24- and 22-gauge steel or 0.032 and 0.040 aluminum, the panels offer a sleek finish, adding a touch of modern luxury to walls, soffits, ceilings, fascias, sheet metal siding and even fencing.
With a generous 10 seven-eighths-inch coverage, these panels are not just about form but also function, effortlessly transforming spaces with a smooth finish that’s concealed yet striking. Ideal for both open framing and solid sheathing, these panels come in continuous lengths up to 40 feet, making installation a breeze. Unleash your creativity and reimagine your spaces with Berridge Reveal Series Panels, where style seamlessly meets lifestyle.
Materials
- 24 and 22 Gauge Steel
- 0.032 and 0.040 Aluminum
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System
- Coverage: 10 7/8”
- Finishes: Smooth
- Fasteners: Concealed
- Applications: Vertical on fencing; horizontal or vertical over open framing or solid sheathing
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Interlocks with BR-12, HC-16, HR-4, HR-16, HS-8, and HS-12 panels
- Use siding starter strip to start panel at bottom of soffit or sill
- Use channel closure at inside and outside corners
- Use standard channel at jambs
- Use special channel at jambs
Technical
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
