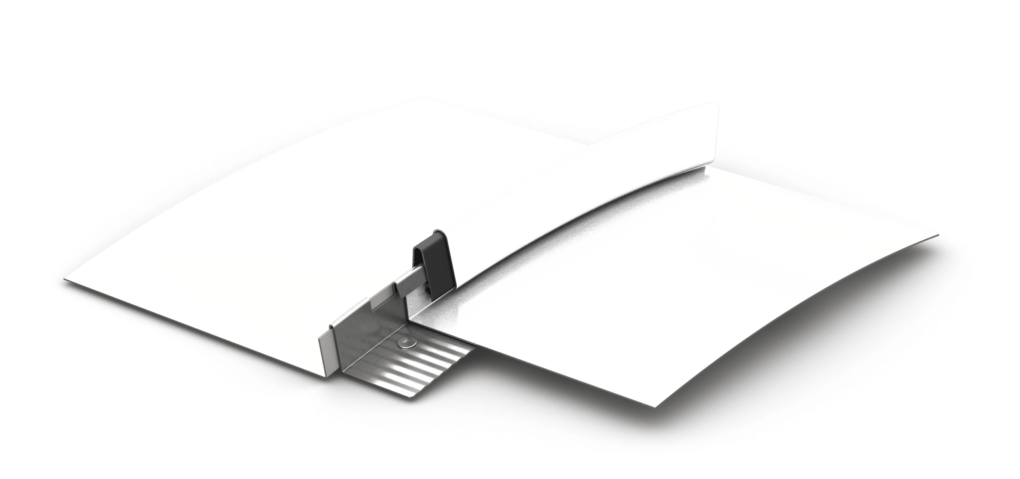

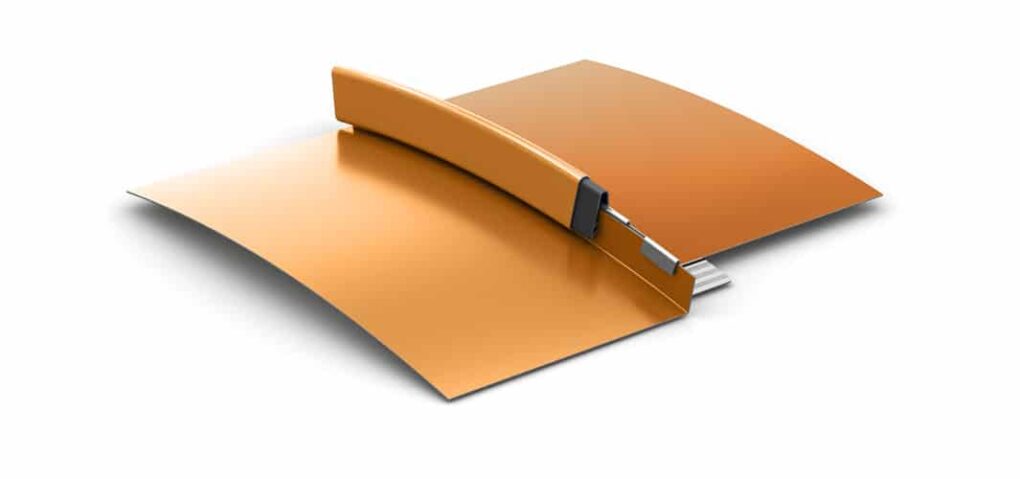

The Berridge Curved Tee-Panel is an ideal roofing choice for concave, convex or compound curved corners and domed roof construction with solid sheathing. This panel can be curved or tapered on site, allowing for versatility with the added benefit of the exclusive vinyl weatherseal that is a part of the snap-on seam.
Materials
- 24 Gauge Steel
- Limited Availability: 22 Gauge Steel, 0.032 Aluminum
Specifications
- Uses: Roof, Fascia*
- Coverage: 12 3/4"
- Finishes: Smooth
- Fasteners: Concealed
- Applications: Solid sheathing
- Seam: 1" snap-on with extruded vinyl weatherseal
Installation
- For Roofing applications only
- Tee-Panels and snap-on seams can be curved in continuous length panels on site using the Berridge SS-14 Roll Former
- Convex at a minimum of 4’
- Concave at a minimum of 6’
- Straight or curved Tee-Panels can be formed on site with the Berridge SL-14 Roll Former
- Compound Curved Tee-Panels are formed on site with the Berridge SL-1 Roll Former. The SL-1 does not curve panels. Panels must be hand curved over solid decking
- Snap-on seams are curved using the SS-14 Roll Former or the SC (Seam Curver) Roll Former
- Extra snap-on seam caps are factory formed to a maximum of 40’
- Use Seam Sleeve for splicing Tee-Panel snap-on seams
- Entire roof area shall be covered with Berridge approved underlayment
- Use 1” Folding Tee-Clip typically at 24” O.C. with Tee-Panel
- Use 1” Stainless Folding Tee-Clip typically at 12” O.C. with Aluminum panels
Note:
* Fascia can not be curved or tapered
Technical
UL Classifications
-
UL Wind Resistance Rated: UL-90 (Approved for Steel and Aluminum)
-
UL Fire Resistance Rated: UL-790 (Approved for Steel and Aluminum)
-
UL Impact Resistance Rated: UL-2218 (Approved for Steel and Aluminum)
ASTM Tests
-
ASTM Wind and Water Resistance Tested: ASTM E-1646 (Approved for Steel and Aluminum)
-
ASTM Wind and Water Resistance Tested: ASTM E-1680 (Approved for Steel and Aluminum)
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Warranties
Miscellaneous
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers

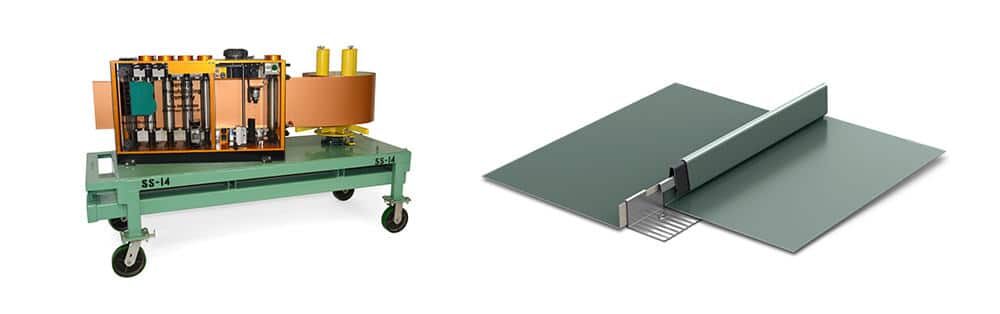

SS-14 TEE-PANEL ROLL FORMER
View All Roll Formers
SL-24 TAPERED TEE-PANEL ROLL FORMER
View All Roll FormersAccessories
Berridge Tee-Clips are available in 24GA, 1″ or 1-1/2″ heights, and are produced in random colors.
Berridge Folding Tee-Clips are 28GA and are used for curved applications. They are available in 1″ or 1-1/2″ heights.
Berridge Seam Caps are only available for use with the Berridge Tee-Panel System and include Berridge’s patented Vinyl Weatherseal.
Use seam splices for Tee-Panel seams longer than 40′.
