Product Information

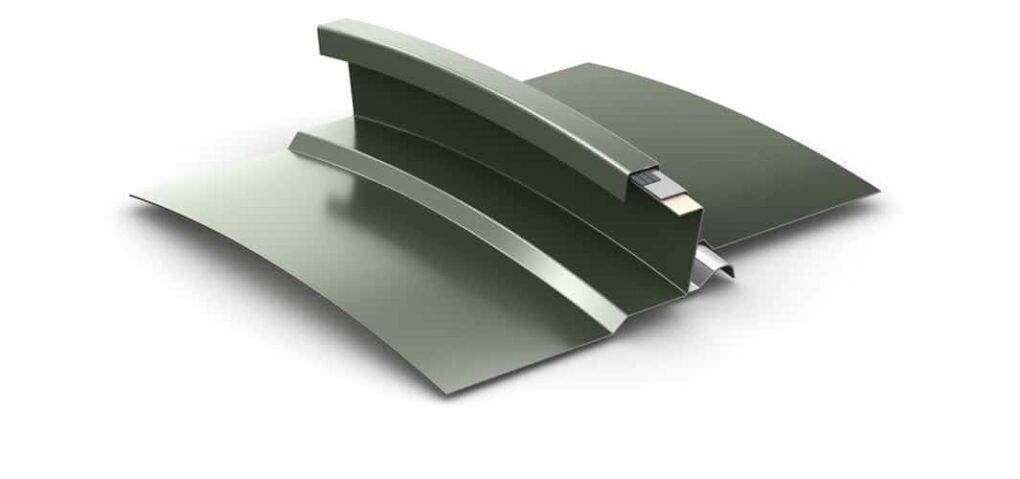

The Berridge Manufacturing Curved Zee-Lock Panels epitomize architectural innovation, offering a seamless combination of form and function for a variety of real-world applications. Crafted from durable 24- and 22-gauge steel, these panels boast a 2-inch standing mechanically seamed sidelap, providing a watertight seal for roofing applications. The standard 16-inch coverage, available in both smooth and optional striated finishes, offers design flexibility for architects and builders alike.

What sets the Curved Zee-Lock Panels apart is their ability to transform conventional structures into captivating works of art. Designed specifically for roofing applications, these panels can be curved in continuous lengths on-site using the Berridge ZC-21 Zee-Lock Curving Machine. The curvature can achieve a minimum radius of 20 feet, allowing architects to introduce dynamic, visually engaging elements to their designs.

Real-world applications for Curved Zee-Lock Panels are diverse. Imagine a modern shopping mall with a sweeping, curved roof that not only provides shelter but also becomes a distinctive architectural feature. Alternatively, consider a contemporary residential development where the Curved Zee-Lock Panels create unique, eye-catching rooflines, contributing to the neighborhood’s overall aesthetic.

In addition to aesthetics, the panels maintain the reliability and durability expected from Berridge products. The Curved Zee-Lock Panels redefine roofing possibilities, enabling architects to turn their visions of curved designs into reality while ensuring the performance and longevity required for diverse architectural applications.

Materials

  • 24 and 22 Gauge Steel

Specifications

  • Uses: Roof, Fascia*
  • Coverage: 16"
  • Finishes: Smooth, optional striations
  • Fasteners: Concealed
  • Applications: Open framing, solid sheathing

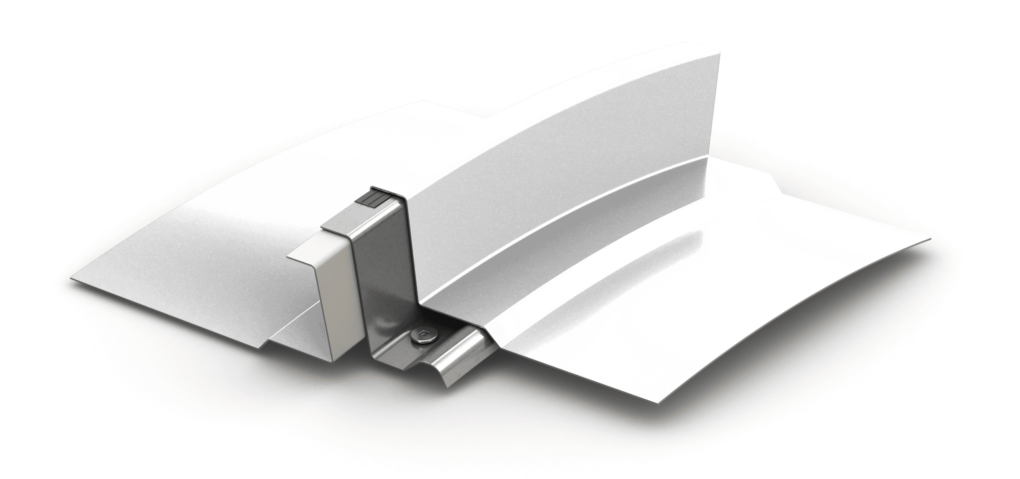

  • Seam: 2" standing mechanically seamed sidelap
  • Optional: Snap-on batten cap, extruded vinyl weatherseal on continuous rib**

Installation

  • Roofing applications only

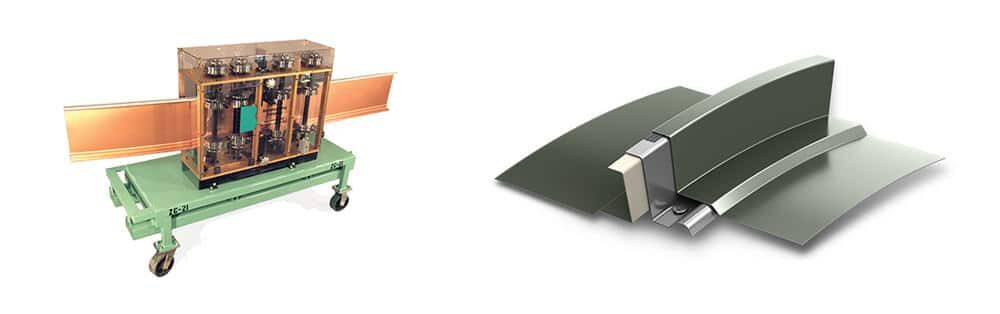

  • Zee-Lock panels and Zee Rib can be curved in continuous lengths on site using the Berridge ZC-21 Zee-Lock Curving Machine. This can be used in tandem with the SP-21 Roll Former or as a stand alone unit
  • -- Convex at a minimum of 20’
  • Tapered Zee-Lock panels can be formed on-site using the Berridge TZ-21 Roll Former
  • Extruded vinyl weatherseal is required for curved applications
  • Continuous Zee-Rib is recommended for open framing and required for watertightness warranty
  • Consult BMC concerning load capacity details
Note: * Fascia can not be curved or tapered. Aluminum can not be curved or tapered. ** Vinyl weatherseal required for watertightness warranty
