Product Gallery




Product Information

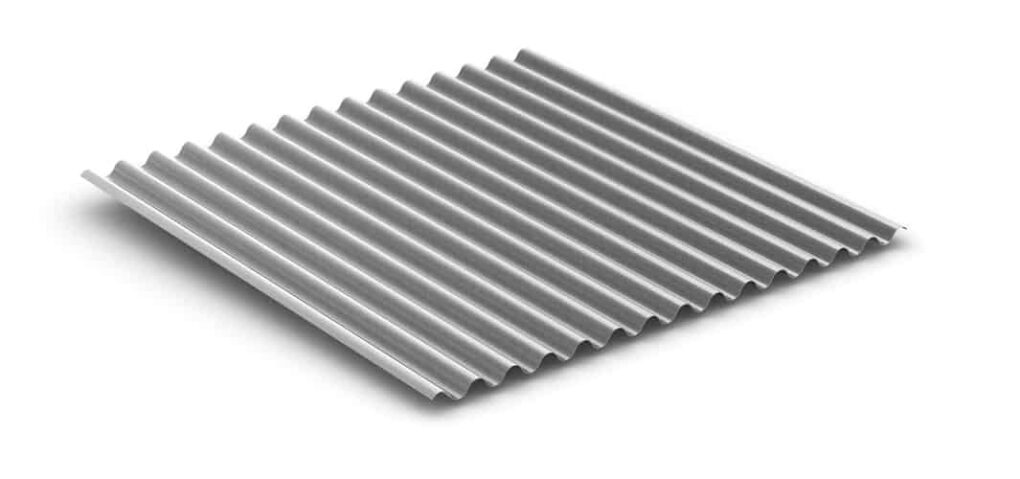

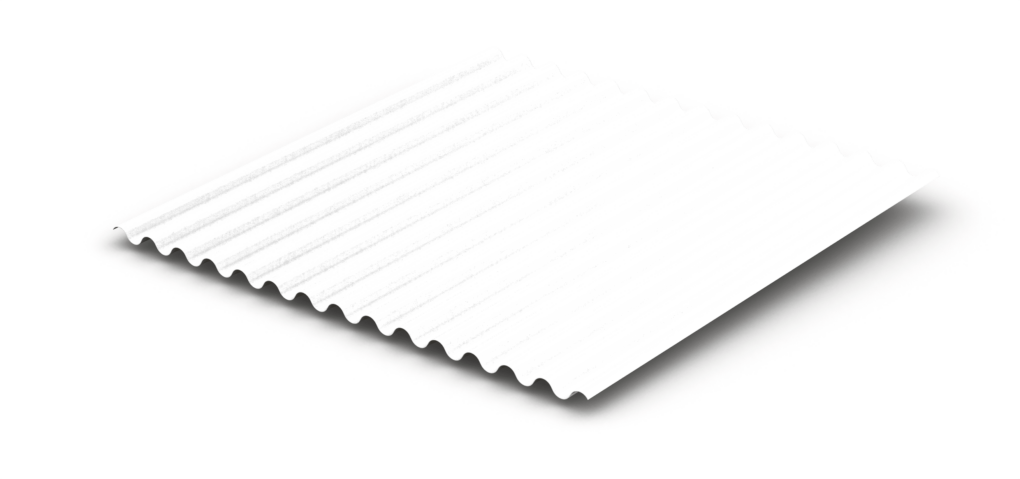

The Berridge S-Deck Panels are corrugated structural metal and can be installed horizontally or vertically with exposed fasteners. S-Deck may be curved making it ideal for use over covered walkways and shelters. This panel is available in two coverage options, two substrate options and is ideal for a variety of uses.
Materials
- 24 and 22 Gauge Steel
- 0.032 and 0.040 Aluminum
Specifications
- Uses: Roof, Wall, Soffit, Ceiling, Fascia, Sheathing, Screen wall
- Coverage: 32" and 34 2/3"
- Finishes: Smooth corrugated
- Fasteners: Exposed
- Applications: Vertical or horizontal* over open framing or solid sheathing

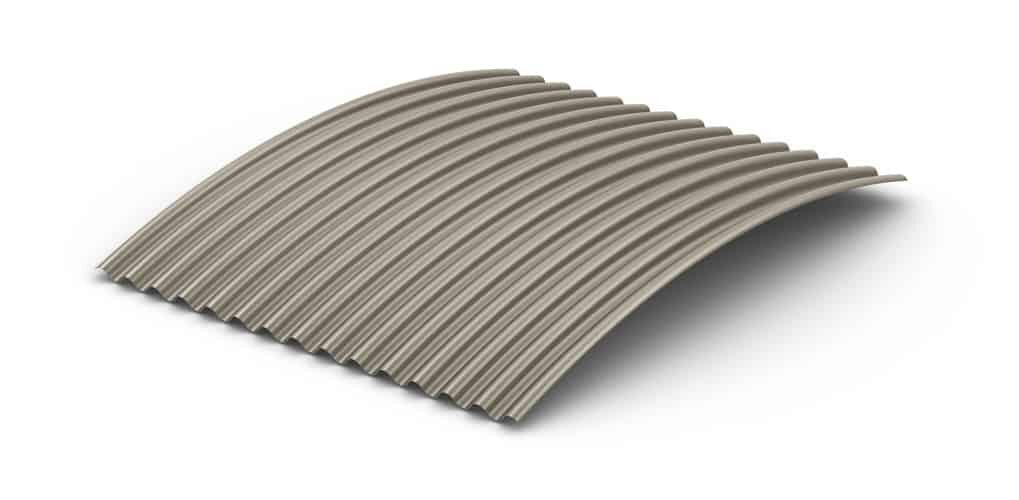

- Optional: Factory curved for limited applications
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40ā
- Structural properties allow it to be utilized as a sheathing option
- Estimate 130 fasteners/sq
- Use foam closures to help prevent air infiltration at ridges, eaves, head walls, etc.
- Use expandable foam filler tape per installation details as closure at hips and valleys
- Use mastic sealant tape per installation detail at panel endlaps, sidelaps, skylights, with foam closures, etc.
* Horizontal on wall applications only
Technical
UL Classifications
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
Florida Product Approvals
Miscellaneous
-
Texas Department of Insurance Listed
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Miscellaneous
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories

Rubber closures to help prevent air infiltration at ridges, eaves, headwalls, etc.

Use per installation details as closure at hips & valleys.

Use per installation details at panel endlaps, sidelaps, skylights, with foam closures, etc.
