Product Gallery

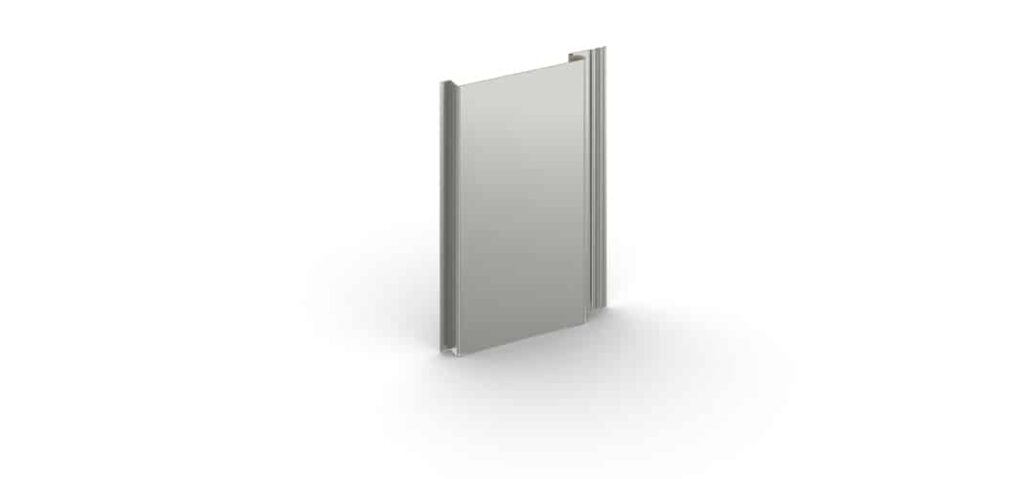

Flush Seam
stucco-embossed
wood-grain

Product Information

The Berridge Manufacturing Flush Seam Panel offers a distinctive finish with optional stucco embossing or wood grain texture, delivering a uniform, soft reflectivity and a flat overall appearance. Crafted from durable 24-gauge steel, this prefinished panel is designed for vertical installation over open framing or solid sheathing, making it versatile for applications such as walls, soffit, ceilings or fascia.

With a coverage of 3 and seven-eighths inches, this concealed fastener panel adds a touch of sophistication to diverse architectural projects. While the panel itself does not curve, it can be effectively used on curved walls, showcasing its adaptability. Available in continuous lengths up to forty feet, the Berridge Flush Seam Panel combines aesthetic appeal with practical functionality. For specific installation details, especially for curved applications, consult the Berridge technical department. Elevate your designs with the seamless beauty of the Flush Seam Panel.

Materials

  • 24 Gauge Steel

Specifications

  • Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System
  • Coverage: 3 7/8"
  • Finishes: Stucco embossed, optional wood grain
  • Applications: Vertical over open framing or solid sheathing
  • Fasteners: Concealed

Installation

  • Panel is available from the factory in continuous lengths to a maximum of 40’
  • Panel may be used on curved walls but the panel itself does not curve. Consult the Berridge technical department for installation details at [email protected]

Technical

ASTM Tests

  • ASTM E-330 wind resistance tested
  • ASTM E-283 wind and water resistance tested

Florida Product Approvals
