Product Information

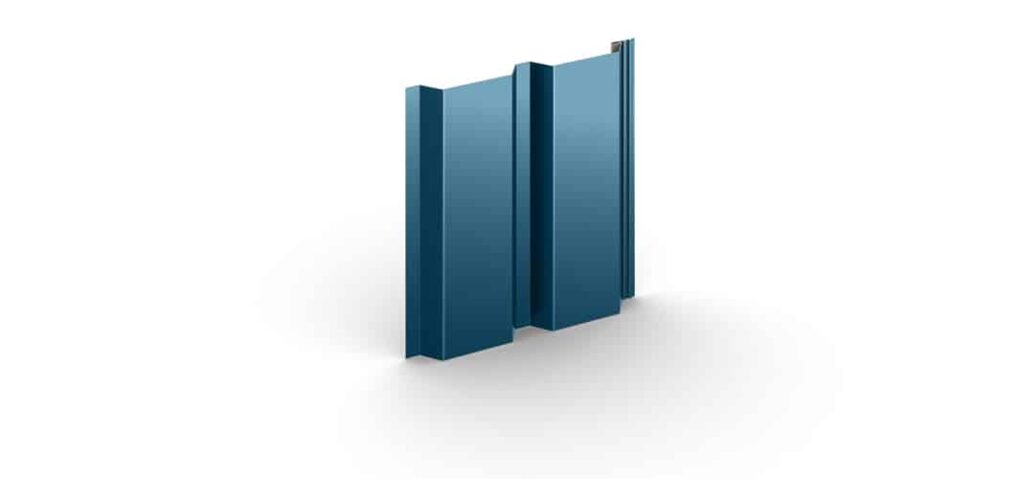

The Berridge Manufacturing B-6 Panel stands out as a robust and visually appealing corrugated solution, offering a six-inch wide, maintenance-free panel with a distinctive extruded vee-groove pattern. Crafted from 24-gauge steel, this prefinished panel is versatile, finding excellent utility in wall, soffit, ceiling, sheet metal siding and fascia applications. The concealed fasteners enhance its sleek appearance, ensuring a smooth finish.
Designed for vertical installation over open framing or solid sheathing, the B-6 Panel demonstrates its adaptability. The extruded vee-groove pattern adds character to diverse architectural projects. Available in continuous lengths up to forty feet, this panel accommodates straight installations and, with careful consideration, can be used on curved walls. For specific installation details and curved applications, consult the Berridge technical department. Elevate your metal panel siding projects with the Berridge B-6 Panel’s blend of strength and aesthetic appeal.
Materials
- 24 Gauge Steel
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System
- Coverage: 6"
- Finishes: Smooth
- Fasteners: Concealed
- Applications: Vertical over open framing or solid sheathing
- Pattern: Extruded vee-groove
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Panel may be used on curved walls but the panel itself does not curve. Consult the Berridge technical department for installation details at [email protected]
Technical
ASTM Tests
-
ASTM E-330 wind resistance tested
