Product Information

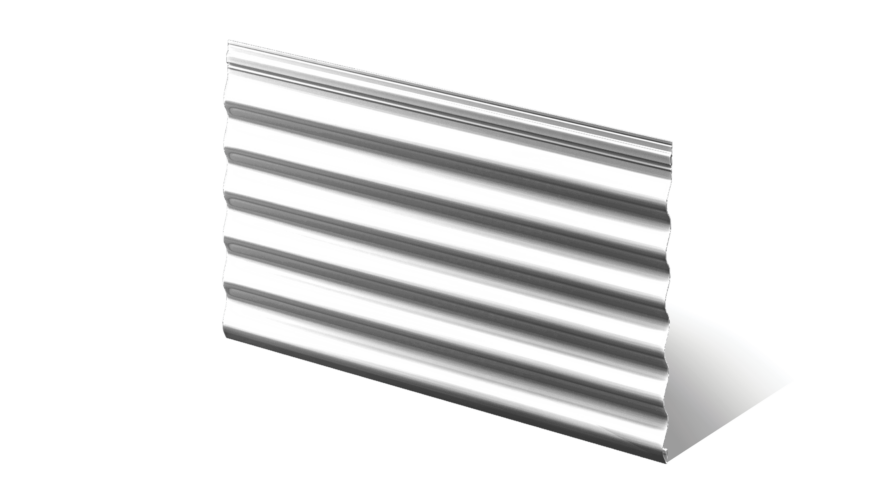

The Berridge HC-16 Panel is a concealed fastener 7/8” deep corrugated metal wall panel which can be installed horizontally or vertically. This multipurpose panel provides a traditional corrugated appearance without the use of exposed fasteners. The panel is available in 24 gauge and 22 gauge steel and 0.032 and 0.040 aluminum and can interlock with Berridge’s HR and HS panel profiles for maximum design flexibility.
Materials
- 24 and 22 Gauge Steel
- 0.032 and 0.040 Aluminum
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall
- Coverage: 16"
- Finishes: Smooth
- Fasteners: Concealed
- Applications: horizontal or vertical over open framing or solid sheathing for other uses
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40'
- Interlocks with HR-16 and HS panels
Technical
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Miscellaneous
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories
Use starter strip to interlock the first row of panels.
HC-16 rubber closures to prevent air infiltration.
