Batten Seam
Southwest Steel_2_ Berridge Manufacturing
Southwest Steel_3_Berridge Manufacturing

Product Information

The Berridge Batten Seam Panel system is a two-part system utilizing the Deep Vee Panel and square snap-on battens for bold panel lines. This system may be installed over open framing or solid sheathing and uses concealed fasteners to create its smooth, wide seam appearance.

Materials

  • 24 Gauge Steel

Specifications

  • Uses: Roof, Fascia
  • Coverage: 16"
  • Finishes: Smooth
  • Fasteners: Concealed
  • Applications: Open framing, solid sheathing
  • Seam: 2" wide and 1 3/4" high snap-on batten cap

Installation

  • Deep Vee-Panel, snap-on batten cap, and the batten seam inner rib** are available from the factory in continuous lengths to a maximum of 40’
  • May be site formed in continuous lengths with the Berridge BP-21 Roll Former
  • Use Batten Clip typically at 20” O.C. along each panel rib
  • Estimate 50 clips/sq with 1 fastener/clip
  • Use Batten End Cap as mechanical closure at bottom of panel runs
  • Use Zee-Flashing as mechanical weather closure at ridges, hips, etc. Field cut to fit between panel legs
  • Use Standard Channel at end walls and flashed area*
  • Use Special Channel at gable ends and area where color will show on all sides*
  • Use Snap-On Batten Cap continuously at panel side joints. Estimate 75 LF/SQ. See typical details for splice and eave turn-downs
  • Use Batten Seam Inner Rib** with Inner Rib Expansion Clip to allow for thermal movement of panels over 30’ long

* Trim Drawing with dimensions and finish side required for all Berridge manufactured trim pieces

** Batten Seam Inner Rib required for UL 90 certification

Technical

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Roll Formers

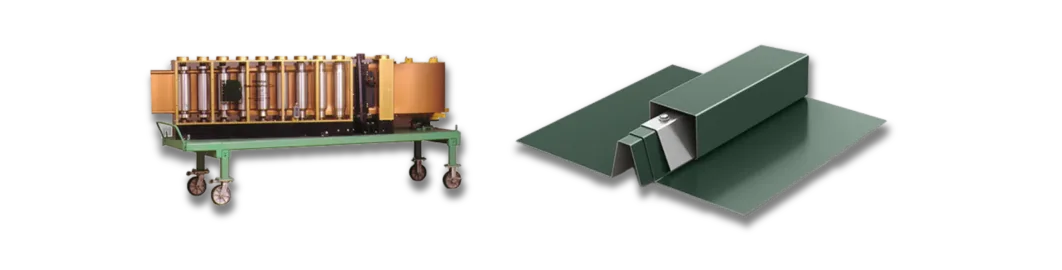

BP-21 BATTEN SEAM ROLL FORMER

View All Roll Formers

Accessories

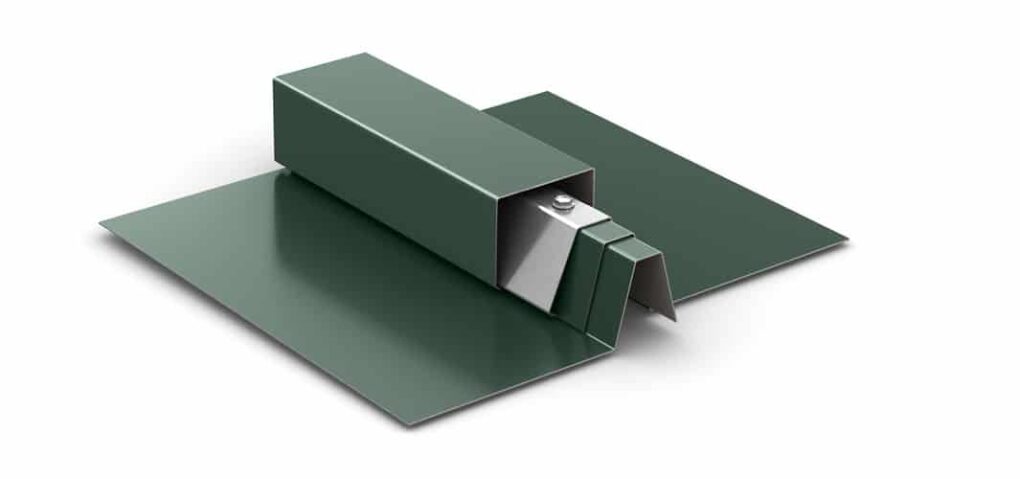

Fasten through Batten Clips along panel ribs. Square Battens snap over clips.
Snap On Batten Cap provides large, visible seams and hides fasteners.
Use Batten End Cap as mechanical closure at the bottom end of panel runs.
Inner Rib Expansion Clip allows for thermal movement of panels over 30′. Use with Inner Rib.
Use Inner Rib with Expansion Clip to allow thermal movement of panels over 30′ long.
