Product Information

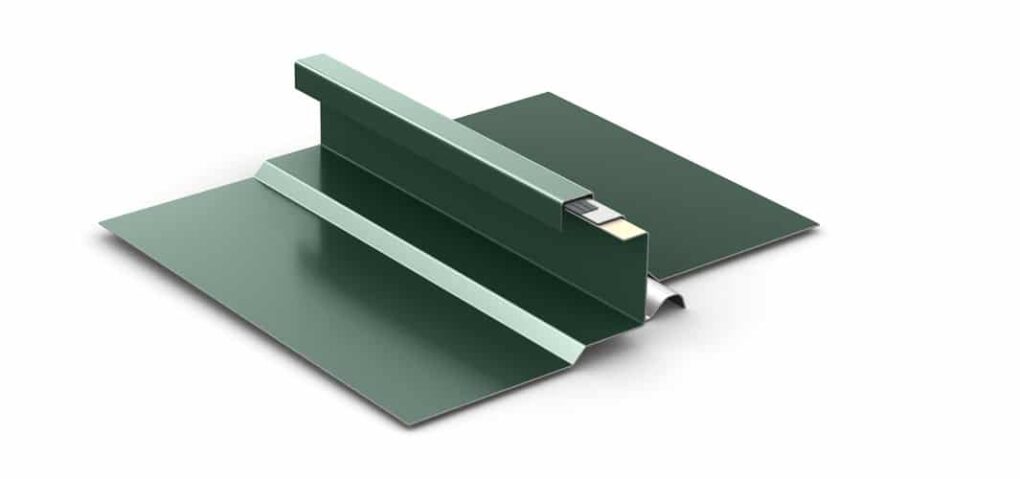

The Berridge Single Lock Zee-Lock architectural metal standing seam panel is designed for residential or commercial construction over open framing or solid sheathing. This 2″ high mechanically seamed panel is ideal for straight or curved applications.

Materials

  • 24 and 22 Gauge Steel
  • 0.032 and 0.040 Aluminum*

Specifications

  • Uses: Roof, Fascia*

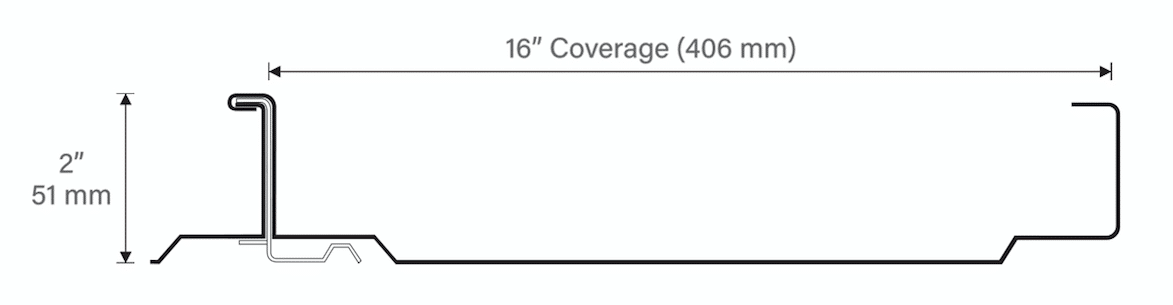

  • Coverage: 16"
  • Finishes: Smooth, optional striations
  • Fasteners: Concealed
  • Applications: Open framing, solid sheathing
  • Seam: 2" standing mechanically seamed sidelap
  • Optional: Snap-on batten cap, extruded vinyl weatherseal on continuous rib**

Installation

  • Panel is available from the factory in continuous lengths to a maximum of 40’
  • May be site formed in continuous lengths with the Berridge SP-21 Roll Former
  • Panel is mechanically seamed in the field using the Berridge Zee-Lock Seamer in a single pass
  • Continuous Zee-Rib is recommended for open framing and required for watertightness warranty
  • Use Stainless Steel Zee-Lock Clip with Aluminum panels
  • Optional extruded vinyl weatherseal is required for open framing
  • Optional Snap-On Batten Cap requires the Zee-Lock Batten Clip
Note: * Fascia can not be curved or tapered. Aluminum can not be curved or tapered. Please consult the Curved or Tapered Zee-Lock Panel page for more information on the panel’s curving and tapering abilities. ** Vinyl weatherseal is required for watertightness warranty

Technical

UL Classifications

ASTM Tests

Florida Product Approvals

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Roll Formers

SP-21 ZEE-LOCK ROLL FORMER

View All Roll Formers

Accessories

Berridge Zee-Clips can be used over solid decking applications.
Continuous Zee-Rib with vinyl for higher performance. Required for open framing and WTW’s. Available with or without vinyl.
Die-stamped to match the panel profile. Use as a mechanical weather closure at ridges, headwalls, and slope transitions. Use Zee-Flashing for hips.
Panel support clips are required for expansion joints. Use at purlin and other framing locations to provide support for the ends Zee-Ribs.
Use square battens for a larger, more visible seam. Use with Zee-Lock Batten Clip.
Attach to single locked seam with hand crimper. Not for use with Vinyl Weatherseal.
