Product Gallery



Product Information

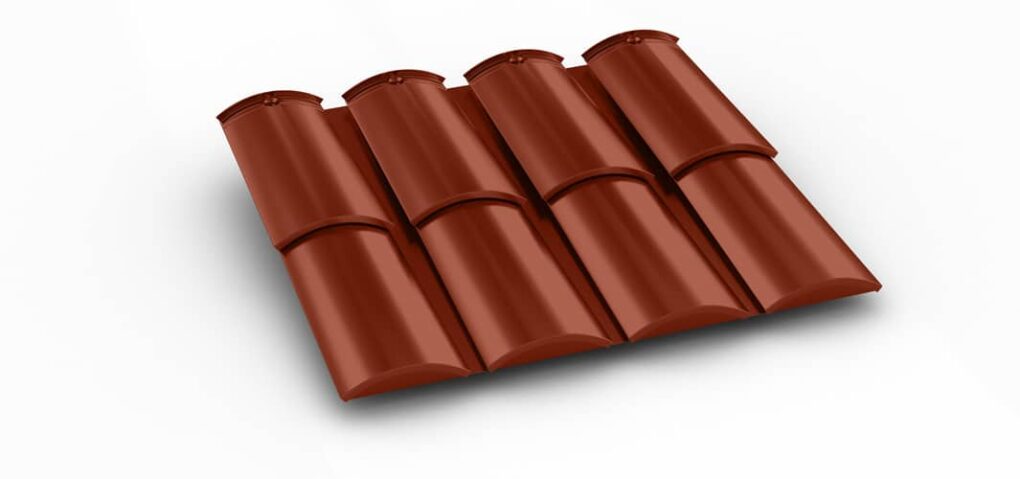

The Berridge Spanish Tile system is a durable way to achieve a Spanish tile look. This significantly lighter than clay option is applied over the Deep-Vee Panel and provides longer longevity and increased durability over the clay alternative due to the benefits of using high strength steel instead of clay.
Materials
- 24 Gauge Steel
Specifications
- Uses: Roof
- Coverage: 8" wide x 16" long
- Finishes: Smooth
- Fasteners: Concealed
- Applications: Open framing, solid sheathing
- Tiles: 8" wide and 2" tall
- Optional: Custom mixed color palette
Installation
- Individual factory formed tiles are installed on top of Deep Vee-Panel factory formed panels to a maximum of 40’
- Deep-Vee Panels may be site formed in continuous lengths with the Berridge SP-14 Roll Former
- 100 tiles per square included. Order individual Spanish Tiles separately for hips, ridges, etc.
- Estimate 180 fasteners per square (80 Deep Vee-Panels, 100 for tiles)
- Use Flat Ridge/Hip Cap Flashing at ridges and hips alone or as sub-flashing to mount individual Spanish Tiles along 1” leg
- Use one eave closure at 9” O.C. along bottom row of tiles to close off ends of tiles at eaves and valleys*
- Use Zee-Flashing as mechanical weather closure at ridges, hips, etc. Field cut to fit between seams*
- Use standard channel at end walls and flashed areas*
- Use special channel at gable ends and areas where color will show on all sides*
* Trim drawings with dimensions and finish side required for all trim pieces
Technical
UL Classifications
Florida Product Approvals
Miscellaneous
-
Texas Department of Insurance Listed
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Warranties
Miscellaneous
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories

Order Individual Spanish Tiles separately for ridges, hips, etc. Use with Flat Ridge/Hip Caps.

Use one Tile Closure at along bottom row of tiles at eave to close off ends of tiles. Also used in valleys.

Use Flat Ridge/Hip caps alone or as sub-flashing to mount Individual Spanish Tile.
