Product Information

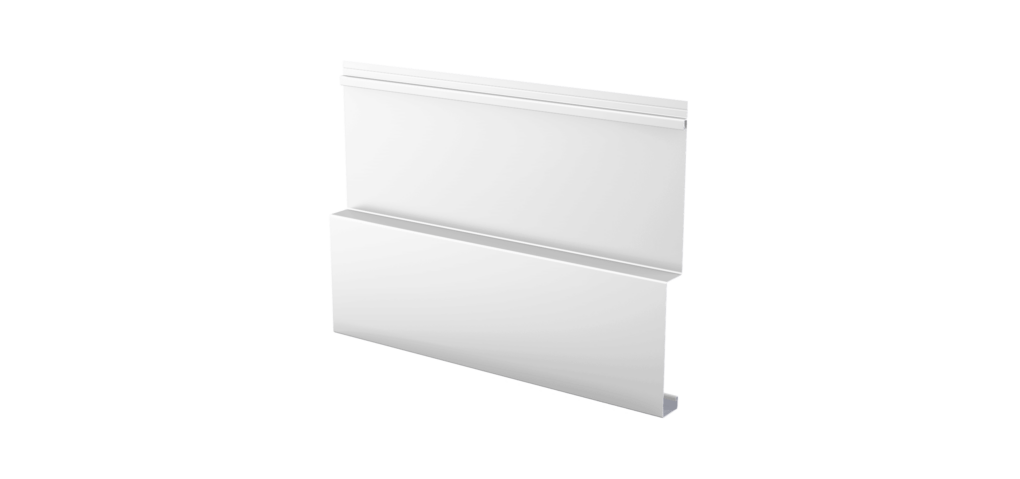

Transform your space effortlessly with Berridge Manufacturing Reveal Series Panels, the perfect blend of style and practicality for both horizontal and vertical wall applications. These concealed fastener metal wall panels open up a world of design possibilities, seamlessly interlocking with a variety of Berridge panels such as BR-12, HC-16, HR-4, HR-16, HS-8 and HS-12. Crafted from sturdy 24- and 22-gauge steel or 0.032 and 0.040 aluminum, these panels offer a smooth finish, adding a touch of sophistication to any project.
With a generous 14-and-one-half-inch coverage, these panels are not just functional but versatile, fitting seamlessly into applications like vertical fencing, soffits, ceilings, fascias, screen walls, sheet metal siding and more. Easy to install with continuous lengths up to 40 feet, Berridge Reveal Series Panels empower you to bring your metal panel siding or roofing design vision to life with ease and flair.
Materials
- 24 and 22 Gauge Steel
- 0.032 and 0.040 Aluminum
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System

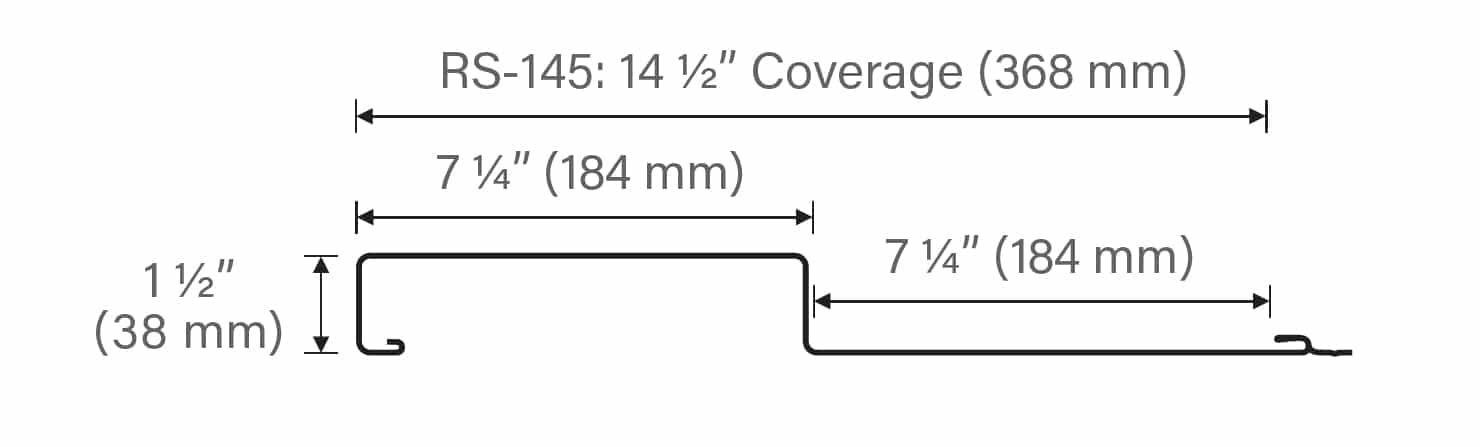

- Coverage: 14 1/2”
- Finishes: Smooth
- Fasteners: Concealed
- Applications: Vertical on fencing; horizontal or vertical over open framing or solid sheathing
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Interlocks with BR-12, HC-16, HR-4, HR-16, HS-8, and HS-12 panels
- Use siding starter strip to start panel at bottom of soffit or sill
- Use channel closure at inside and outside corners
- Use standard channel at jambs
- Use special channel at jambs
Technical
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
