Tee Lock Panel Slider
SunTrax Tee-Lock Panel Shasta White
SunTrax Tee-Lock Panel Shasta White

Product Information

Introducing the Berridge Tee-Lock, the latest addition to the Berridge Manufacturing standing seam product line, offering a modern sheet metal siding or roofing solution with a symmetrical two and three-eighths-inch high profile and an impressive 18-inch coverage. Available in both 24- and 22-gauge steel, as well as 0.032 and 0.040 aluminum, this versatile panel is designed for roofing and fascia applications over both solid sheathing and open framing.

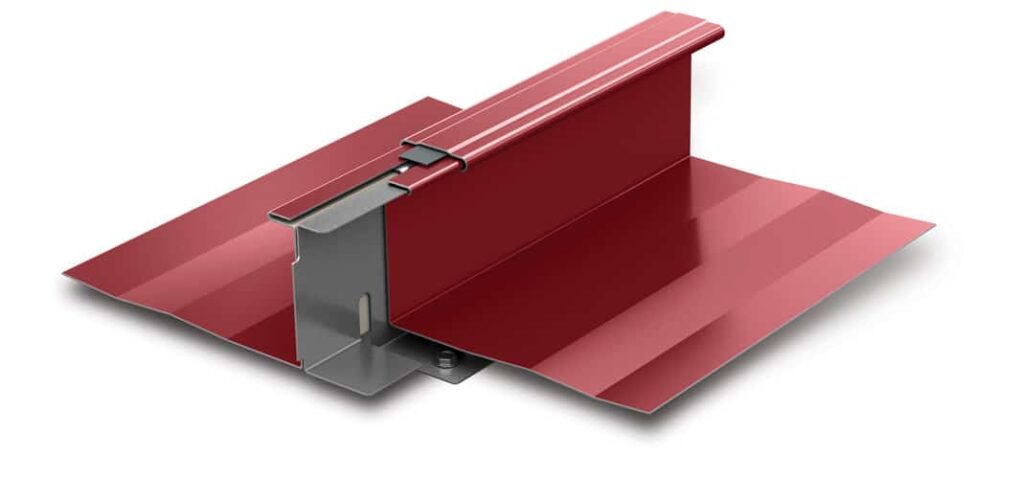

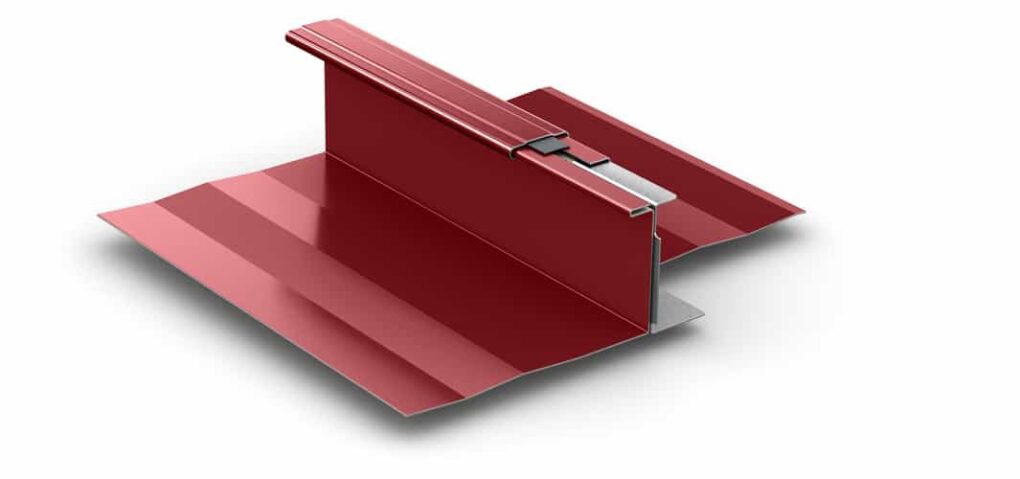

The Tee-Lock stands out with its concealed fasteners and is available in a striated finish with the optional choice of a smooth surface, providing design flexibility. The two and three-eighths-inch standing mechanically seamed sidelap ensures a robust and weathertight connection, contributing to the durability of the structure.

This panel is available in continuous lengths up to 40 feet and can be site-formed using the Berridge TP-24 Roll Former, providing seamless integration into various architectural designs. The Tee-Lock Seam Cap, also available in continuous lengths, complements the panel, ensuring a unified appearance.

Real-life applications for the Tee-Lock could range from modern residential roofing projects, where its sleek standing seam profile adds a touch of sophistication, to commercial spaces seeking a durable and aesthetically pleasing fascia or metal panel siding solution. The versatility of the Tee-Lock makes it an ideal choice for a variety of architectural styles, combining functionality with a contemporary aesthetic for your metal roof and siding.

Materials

  • 24 and 22 Gauge Steel
  • 0.032 and 0.040 Aluminum

Specifications

  • Uses: Roofing, Fascia**
  • Coverage: 18"
  • Finishes: Striated, optional smooth
  • Fasteners: Concealed
  • Applications: Open framing, solid sheathing
  • Seam: 2 3/8" standing mechanically seamed sidelap
  • Optional: Extruded vinyl weatherseal*

Installation

  • Panel is available from the factory in continuous lengths to a maximum of 40’
  • Tee-Lock Seam Cap is available from the factory in continuous lengths to a maximum of 40’
  • May be site formed in continuous lengths with the Berridge TP-24 Roll Former
  • Panel is mechanically seamed in the field using the Tee-Lock Panel Seamer
  • Use Stainless Steel Tee-Lock Clip with Aluminum panels
  • Use Continuous Tee-Rib Clip for high uplift resistance on open-framing
Note: * Vinyl weatherseal required for open framing applications as well as watertightness warranties ** Requires flashing break from roof to fascia

Technical

UL Classifications

ASTM Tests

  • ASTM E-1592 Wind Resistance Tested
  • ASTM Wind and Water Resistance Tested: ASTM E-1646 (Approved for Steel and Aluminum)
  • ASTM Wind and Water Resistance Tested: ASTM E-1680 (Approved for Steel and Aluminum)
  • ASTM E-283 wind and water resistance tested

Miscellaneous

Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.

Roll Formers

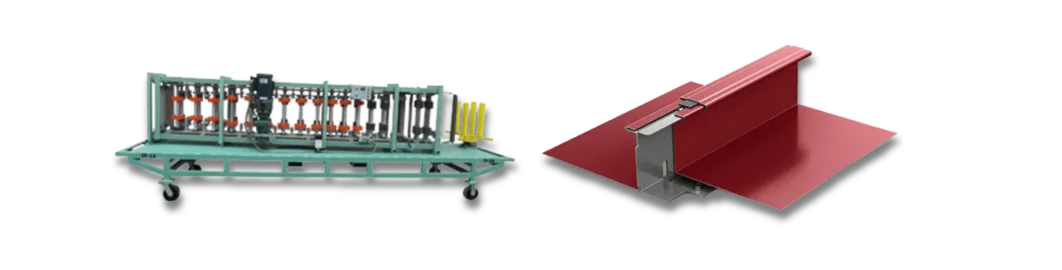

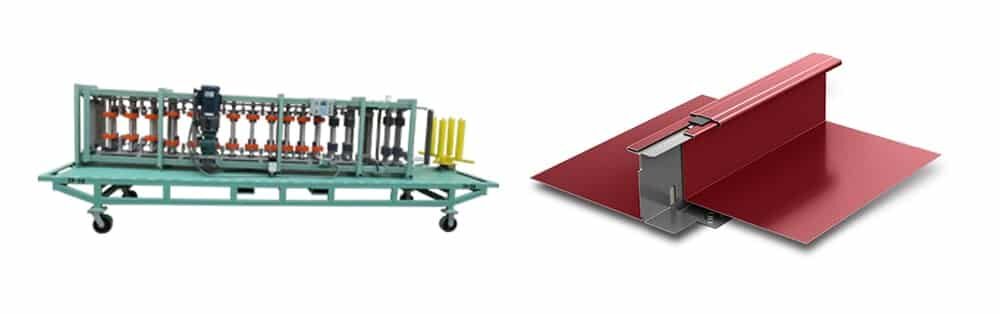

TP-24 TEE-LOCK PANEL ROLL FORMER

View All Roll Formers

Accessories

Berridge Tee-Lock Clips are available in 16GA and 304 Stainless (Required for aluminum panels).
Berridge Tee-Lock Seam Caps with Vinyl Weatherseal are only for use with the Berridge Tee-Lock Panel System and are factory formed to a maximum 40′. Consult BMC for open framing.
Use Zee-Flashing as mechanical weather closure at ridges, hips, etc. Field cut to fit between panel legs. Trim drawings and dimensions & finish side is required for all trim pieces.
The Tee-Lock Ridge Closure is die-stamped to match the panel profile. Use as a mechanical weather closure at ridges, headwalls, and slope transitions. Use Zee-Flashing for hips.
