Product Information

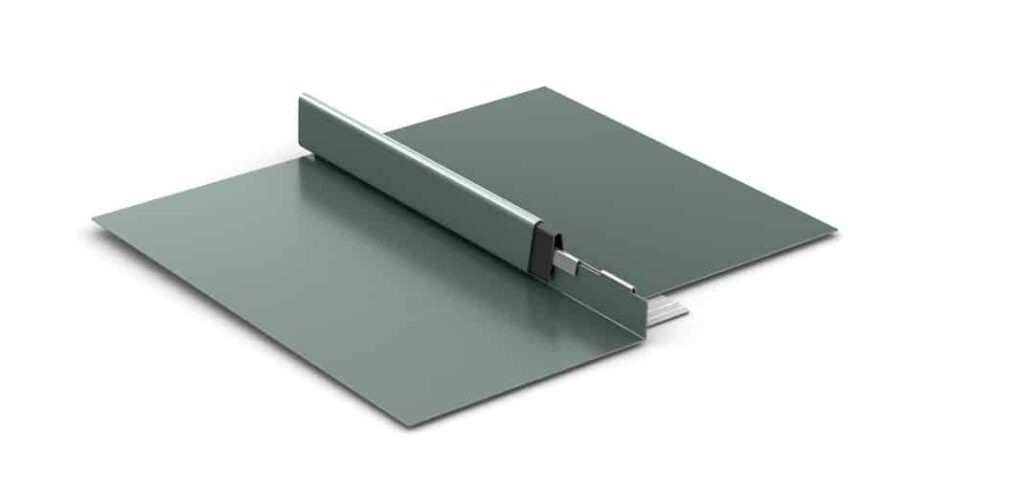

The architectural metal standing seam Berridge Tee-Panel is designed for residential or commercial construction over solid sheathing. This 1″ high panel comes with an exclusive vinyl weatherseal as an integral part of the snap-on seam and can be used in curved and/or tapered applications
Materials
- 24 Gauge Steel
- Limited Availability: 22 Gauge Steel, 0.032 Aluminum
Specifications
- Uses: Roof, Fascia*
- Coverage: 12 3/4"
- Finishes: Smooth
- Fasteners: Concealed
- Applications: Solid sheathing
- Seam: 1" snap-on with extruded vinyl weatherseal
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- May be site formed in continuous lengths with the Berridge SS-14 Roll Former
- Extruded vinyl weatherseal is an integral part of snap-on seam cap and prevents siphoning or flooding over seam
- Extra snap-on seam caps are factory formed to a maximum of 40’
- Use Seam Sleeve for splicing Tee-Panel snap-on seams
- Entire roof area shall be covered with Berridge approved underlayment
- Use 1” Tee-Clip with Steel panels**
- Use 1” Stainless Tee-Clip with Aluminum panels**
Note:
* Fascia can not be curved or tapered. Please consult the Curved and/or Tapered Tee-Panel page for more information on the panel’s curving and tapering abilities.
** Consult Berridge Technical for clip spacing
Technical
UL Classifications
-
UL Wind Resistance Rated: UL-90 (Approved for Steel and Aluminum)
-
UL Fire Resistance Rated: UL-790 (Approved for Steel and Aluminum)
-
-
-
UL Impact Resistance Rated: UL-2218 (Approved for Steel and Aluminum)
ASTM Tests
-
ASTM Wind and Water Resistance Tested: ASTM E-1646 (Approved for Steel and Aluminum)
-
ASTM Wind and Water Resistance Tested: ASTM E-1680 (Approved for Steel and Aluminum)
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Downloads
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
General Info
Colors
Warranties
Add this item to the download cart, so you can retrieve it as part of a ZIP file.
Download this item directly to your computer.
Roll Formers
Accessories
Berridge Tee-Clips are available in 24GA, 1″ or 1-1/2″ heights, and are produced in random colors.
Berridge Folding Tee-Clips are 28GA and are used for curved applications.
Berridge Seam Caps are only available for use with the Berridge Tee-Panel System and include Berridge’s patented Vinyl Weatherseal.
Use seam splices for Tee-Panel seams longer than 40′.
