Product Information

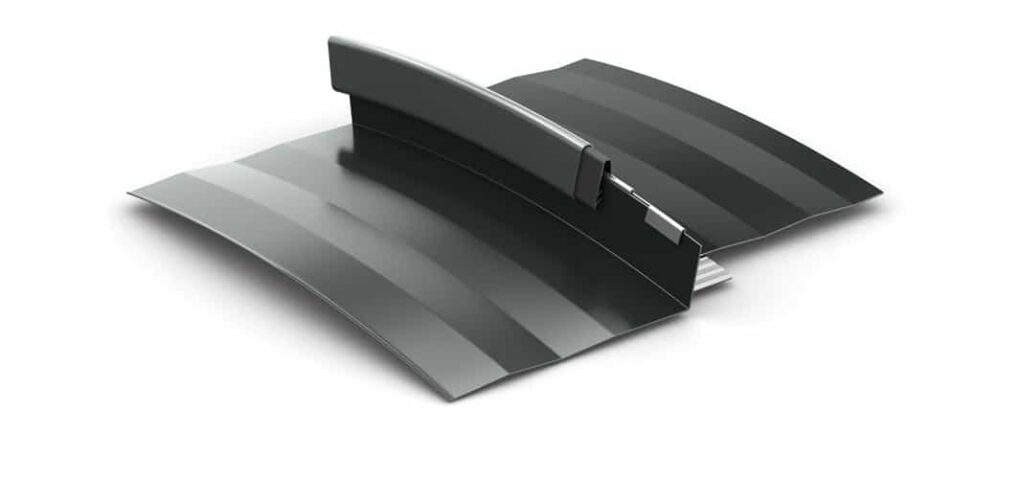

The Berridge Manufacturing High Seam Tee-Panel redefines roofing and metal panel siding possibilities with its dynamic blend of curvature and tapering, delivering a strong aesthetic appeal for various architectural projects. Crafted from durable 24- and 22-gauge steel, with an option for 0.032 aluminum, this panel offers versatility in applications, particularly when a curved or tapered design is desired for sheet metal siding or roofing. The wide 18 and one-quarter-inch coverage and high seams make it a popular choice for projects seeking a distinctive visual impact.
Ideal for roofs and fascia applications over solid sheathing, our High Seam Tee-Panel comes with concealed fasteners and is available in both striated and optional smooth finishes. The snap-on seam — featuring an integral extruded vinyl weather seal — ensures durability and weather resistance.
This panel is formed on-site using the Berridge SS-1421 Roll Former, allowing for both straight and curved applications. For the one-inch seam, it can be convex at a minimum of 5 feet or concave at a minimum of 8 feet. The one-and-one-half-inch seam is convex at a minimum of 8 feet, while concave is not available.
Real-life applications could include the creation of modern rooftop designs, where the High Seam Tee-Panel’s ability to be curved adds a touch of sophistication. Alternatively, it could be applied as corrugated metal siding or to a commercial space, showcasing the panel’s versatility in achieving unique tapered or curved aesthetics. The extruded vinyl weather seal ensures resilience, making the High Seam Tee-Panel a reliable choice for projects that demand both style and durability from their metal roof and siding.
Materials
- 24 and 22 Gauge Steel
- 0.032 Aluminum
Specifications
- Uses: Roof, Fascia**
- Coverage: 18 ¼"
- Finishes: Striated, optional smooth
- Fasteners: Concealed
- Applications: Solid sheathing
- Seam: 1" or 1 ½" snap-on with extruded vinyl weatherseal
Installation

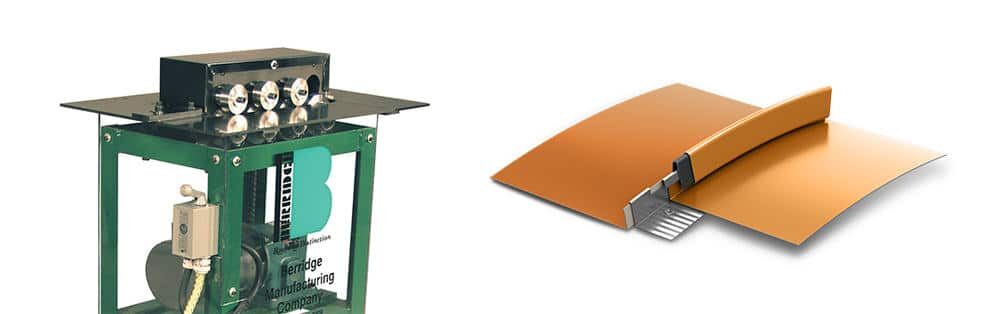

- High Seam Tee Panels, straight and curved, are formed on-site using the Berridge SS-1421 Roll Former. Snap-on seams are also curved with the SS-1421 Roll Former
- 1” Seam: Convex at a minimum of 5’, Concave at a minimum of 8’
- 1 ½” Seam: Convex at a minimum of 8’, Concave is not available
- Straight Tapered High Seam Tee-Panels can be formed on site with the Berridge SL-24 Roll Former and can not be curved
- High Seam Tee-Panels can not be compound curved
- Extruded vinyl weatherseal is an integral part of snap-on seam cap and prevents siphoning or flooding over seam
- Extra snap-on seam caps are factory formed to a maximum of 40’
- Use Seam Sleeve for splicing snap-on seams
- Entire roof area shall be covered with Berridge approved underlayment
- Use 1” or 1 1/2” Folding Tee-Clip*
- Use 1” or 1 1/2” Stainless Steel Folding Tee-Clip with Aluminum panels*
Technical
UL Classifications
-
UL Wind Resistance Rated: UL-90 (Approved for Steel and Aluminum)
-
UL Fire Resistance Rated: UL-790 (Approved for Steel and Aluminum)
-
-
-
UL Impact Resistance Rated: UL-2218 (Approved for Steel and Aluminum)
ASTM Tests
-
ASTM Wind and Water Resistance Tested: ASTM E-1646 (Approved for Steel and Aluminum)
-
ASTM Wind and Water Resistance Tested: ASTM E-1680 (Approved for Steel and Aluminum)
-
ASTM E-283 wind and water resistance tested
Florida Product Approvals
