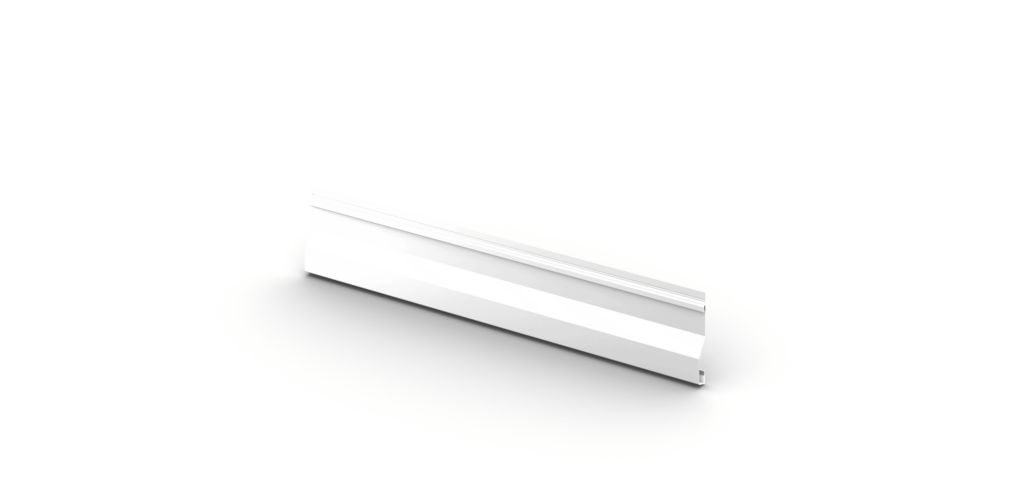

HR-4 Panel: Narrow-Rib Metal Panels For Precision Architectural Design
The HR-4 Panel from Berridge Manufacturing offers a refined cladding solution engineered for precision, versatility and long-term durability. With a narrow rib profile and concealed fastening system, the HR-4 delivers a sleek, continuous surface ideal for commercial, institutional and residential projects.
As a leader in panel manufacturing, Berridge produces the HR-4 to exacting standards, ensuring every panel achieves superior performance and architectural consistency.
Designed for use in horizontal or vertical applications, the HR-4 Panel provides a modern aesthetic that seamlessly integrates into a wide range of building envelopes. Whether specified for walls, soffits, ceilings or fascia systems, this panel combines form and function for lasting results.
Durable Construction And Materials
The HR-4 Panel is crafted from heavy-duty 24- and 22-gauge steel or 0.032 aluminum, delivering the strength required for demanding projects while maintaining a clean, lightweight profile. Its smooth finish offers a polished appearance suitable for large-scale façade systems or accent elements in contemporary architecture.
Narrow-Rib Profile For Sleek Aesthetics
The HR-4 features a four-inch coverage and a distinct narrow rib, giving it a subtle, refined look that pairs well with other Berridge profiles. Its concealed fastener design eliminates visible hardware, ensuring a streamlined surface free from interruptions. Available in continuous lengths up to 40 feet, the HR-4 reduces horizontal seams and provides an efficient, high-quality installation.
Versatile Applications Across Building Types
The HR-4 Panel adapts easily to a variety of design needs, including:
- Exterior wall systems for commercial and residential projects
- Soffits and ceilings requiring a smooth, modern finish
- Fascia installations for cohesive building envelopes
- Integrated use with other Berridge siding profiles for multi-panel designs
This versatility makes the HR-4 a preferred choice for architects and contractors seeking both performance and design freedom.
Engineered For Efficient Installation
The HR-4 interlocks seamlessly with other Berridge profiles, enabling cohesive design systems across large or complex projects. Installation is simplified with factory-formed panels in custom lengths, along with engineered accessories for corners, jambs and terminations. The concealed fastening system ensures not only a clean aesthetic but also long-term resistance to environmental wear.
A Proven Choice In Panel Manufacturing
Backed by decades of expertise in panel manufacturing, Berridge ensures the HR-4 Panel delivers consistent performance, precise fit and architectural impact. From sleek office facades to custom residential exteriors, this panel stands out for its adaptability, durability, and lasting appeal.
Specify the HR-4 Panel for your next project and achieve a sophisticated, narrow-rib finish built on the engineering excellence of Berridge Manufacturing. Contact us today to learn more about integrating the HR-4 into your architectural design.
Materials
- 24 and 22 Gauge Steel
- 0.032 Aluminum
Specifications
- Uses: Wall, Fascia, Screen Wall
- Coverage: 4"
- Finishes: Smooth
- Fasteners: Concealed
- Applications: horizontal or vertical over open framing or solid sheathing
- Pattern: 7/8" height and 4" rib with 2" reveal
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Interlocks with HR-16, HC-16, BR-12, HS-8, and HS-12 Panels
- Use siding starter strip to start panel at bottom of soffit or sill
- Use channel closure at inside and outside corners with or without rubber closures
- Use standard channel at jambs without rubber closures
- Use special channel at jambs without rubber closures
- Use HR rubber closures against air infiltration
Technical
ASTM Tests
-
ASTM E-1592 Wind Resistance Tested
-
ASTM E-283 wind and water resistance tested
