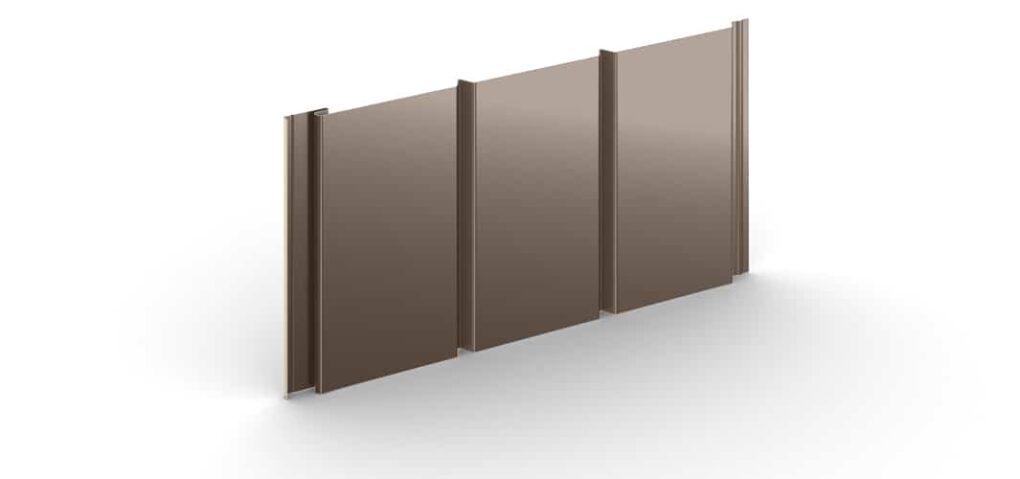

Vee-Panel: Versatile Metal Panels For Walls, Ceilings And Soffit Applications
The Berridge Manufacturing Vee-Panel delivers a distinctive combination of modern design, practical performance and low-maintenance versatility. Engineered for architectural flexibility, this concealed-fastener system enhances a variety of building applications — from walls and ceilings to fascia systems and soffits. As a high-quality soffit panel solution, the Vee-Panel provides the durability and style needed to elevate both interior and exterior spaces.
With a coverage of 12 3/4 inches and a refined V-groove pattern spaced at 4 1/4 inches, the Vee-Panel offers a sleek, detailed finish ideal for modern commercial, institutional and residential projects. Designed to install over both open framing and solid sheathing, this panel provides consistent performance across multiple architectural uses.
Premium Materials And Finish Options
Constructed from durable 24- and 22-gauge steel, the Berridge Vee-Panel ensures lasting strength and dimensional stability. Available in a smooth finish or an optional wood grain embossing, it allows designers to choose between a contemporary aesthetic or the natural warmth of textured metal siding.
For ventilation needs, the optional vented version provides 6.46 square inches of Net Free Vent Area (NFVA) per linear foot, delivering improved airflow while maintaining a polished, cohesive appearance. This makes the Vee-Panel an exceptional choice for functional soffit panel systems that balance performance with design.
Note: Berridge does not recommend vented products in environments with high humidity, marine exposure or corrosive atmospheres due to potential impact on raw steel edges.
Designed For Architectural Versatility
The Vee-Panel’s concealed fasteners and precision-formed interlocking edges provide a seamless installation and a refined, uninterrupted surface. Its flexible design supports a wide range of applications, including:
- Wall cladding systems with concealed fastening
- Soffit installations with optional venting for airflow
- Ceilings and fascia systems for cohesive building envelopes
- Screen walls and fencing systems within the Berridge product line
This adaptability allows the Vee-Panel to serve as both an aesthetic feature and a high-performing cladding solution for diverse building types.
Efficient Installation And Detailing
Factory-formed in continuous lengths up to 40 feet, the Vee-Panel simplifies installation by minimizing horizontal seams. Concealed fasteners ensure a clean, professional look, while factory precision reduces onsite labor and alignment concerns. The result is a system that installs easily while maintaining Berridge’s trademark consistency and quality.
A Sophisticated Soffit Panel Solution
From upscale residential soffits to commercial ceilings and architectural fencing systems, the Vee-Panel embodies the Berridge commitment to excellence in design and manufacturing. It combines practical ventilation options, long-lasting materials and aesthetic customization to deliver a complete solution for modern building needs.
Enhance your next project with the Berridge Vee-Panel — a durable, versatile and visually refined soffit panel system engineered to perform beautifully in every environment. Contact Berridge Manufacturing today to learn more about how the Vee-Panel can complement your design vision.
Materials
- 24 and 22 Gauge Steel
Specifications
- Uses: Wall, Soffit, Ceiling, Fascia, Screen Wall, Berridge Fencing System
- Coverage: 12 3/4"
- Finishes: Smooth, optional wood grain
- Fasteners: Concealed
- Applications: Vertical over open framing or solid sheathing
- Pattern: 4 1/4" between grooves, optional venting
Installation
- Panel is available from the factory in continuous lengths to a maximum of 40’
- Vented option provides 6.46 square inches of Net Free Vent Area (NFVA) per linear foot of panel. (BMC does not recommend vented products in applications subject to aggressive atmospheres, marine environments or high humidity due to the corrosive nature of these environments on raw edges of steel.)
