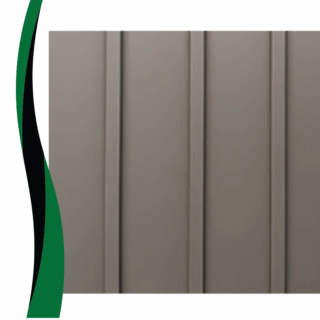

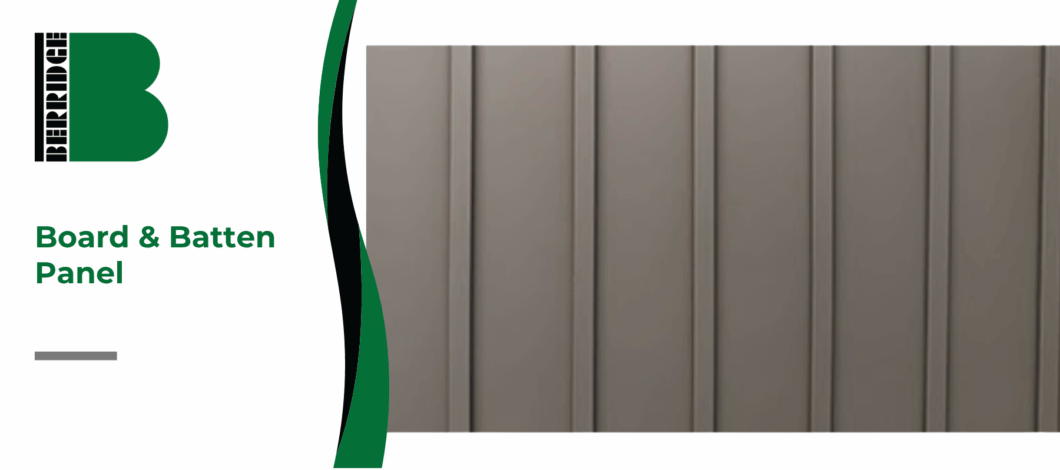

A Vertical Panel Built For A Clean, Structured Look
Since 1970, Berridge Manufacturing has produced metal wall and roofing systems for design teams that expect consistency and long-term performance. The Board & Batten Panel continues that tradition with a vertical layout that creates straight, narrow battens across the wall surface. It offers wide coverage, concealed fastening and a simple visual rhythm suited to many building types.
This profile is a prefinished metal option that maintains a clear vertical pattern without exposed fasteners. It supports projects where a defined layout is part of the overall design and where low maintenance is an important consideration.
Material Options And Specifications
The Board & Batten Panel is available in three materials: 24-gauge steel, 22-gauge steel and 0.032 aluminum. The panel covers 12 ¼ inches and includes a formed 2-inch batten that locks into the adjoining panel. Fastening is concealed and optional fastener slots are listed among the available features.
Finish options include smooth, woodgrain embossed and stucco embossed. These finishes allow the panel to fit a range of architectural styles while keeping the profile consistent.
Installation Notes
The panel installs vertically over open framing or solid sheathing. Continuous lengths up to 40 feet can be supplied from the factory. Concealed fastening helps maintain a steady vertical pattern across the elevation.
Applications
The Board & Batten Panel is listed for wall use and the Berridge Fencing System. Because of its formed batten and lock-in design, it fits projects that call for a straightforward vertical layout. Its simple profile works across commercial, residential and institutional buildings where a clean surface and consistent pattern are desired.
Expanding The Berridge Portfolio
Berridge has produced metal panels for more than five decades, supported by a national network and in-house manufacturing. This profile expands the company’s concealed fastener options and gives architects another vertical wall choice within the same established system range. Its shape, fastening method and material selections follow the practical standards seen across the broader catalog.
Teams familiar with Berridge products will recognize the same attention to profile geometry, metal selection and installation detail. The result is a straightforward option for projects that rely on steady repetition, clean lines and consistent material performance.
Contact Berridge for specifications and ordering details.
Frequently Asked Questions
What materials are available?
24-gauge steel, 22-gauge steel and 0.032 aluminum.
What is the coverage?
12 ¼ inches.
How wide is the batten?
2 inches.
Are the fasteners exposed?
No. Fastening is concealed.
What finishes can be ordered?
Smooth, woodgrain embossed, and stucco embossed.
What is the maximum panel length?
Up to 40 feet from the factory.
